Forced Performance 2001020 71HTA Super Core CHRA for Mitsubishi Evo 8/9

The Forced Performance 71HTA Super Core is a high-performance turbocharger upgrade designed specifically for Mitsubishi Evolution 8 and 9 vehicles equipped with the 4G63T engine. This CHRA (Center Housing Rotating Assembly) offers a cost-effective "Plus One" turbo upgrade that delivers significant power gains while maintaining excellent throttle response and spool characteristics.

Technical Specifications:

• Compressor Wheel: 71HTA design
• Flow Rating: 51 lbs per minute
• Compressor Wheel Inducer: 51.2mm
• Compressor Wheel Exducer: 68mm
• Turbine Wheel Inducer: 55.9mm
• Turbine Wheel Exducer: 49mm
• Compressor Housing: 84mm with Flow Advancement Port Cover
• CHRA Type: FP Journal Bearing

Key Features:

• Direct bolt-in installation to factory Evo 9 turbine housing
• Excellent spool characteristics with low-end torque throughout the powerband
• Budget-friendly upgrade path for significant power gains
• Built-to-order construction ensures precise specifications
• Superior flow characteristics compared to stock turbocharger

Important Installation Notes:

• Based on Evo 9 CHRA architecture
• Evo 8 installations require additional components: Evo 9-style coolant hard lines and compressor cover outlet pipe
• Evo 9 installations are direct-fit to existing oil and water lines
• Oil line and turbine housing sold separately
• Professional installation and ECU tuning required for optimal performance

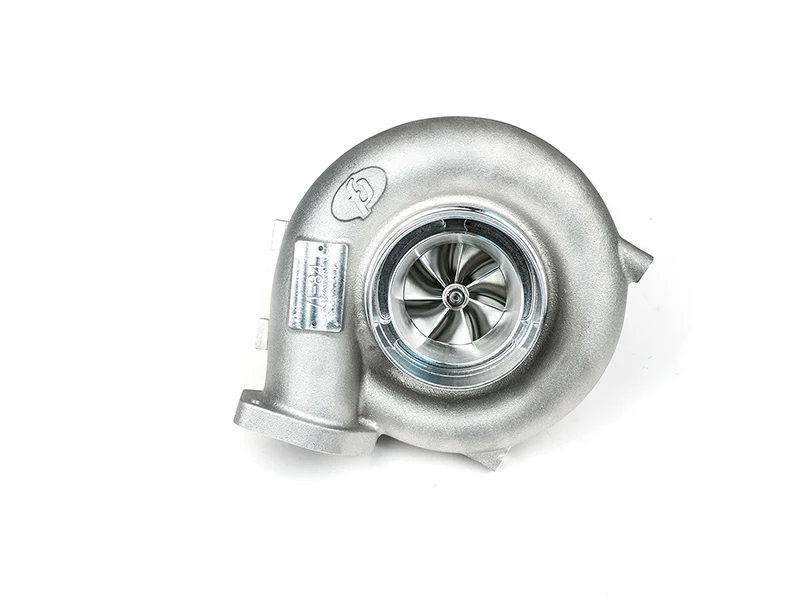

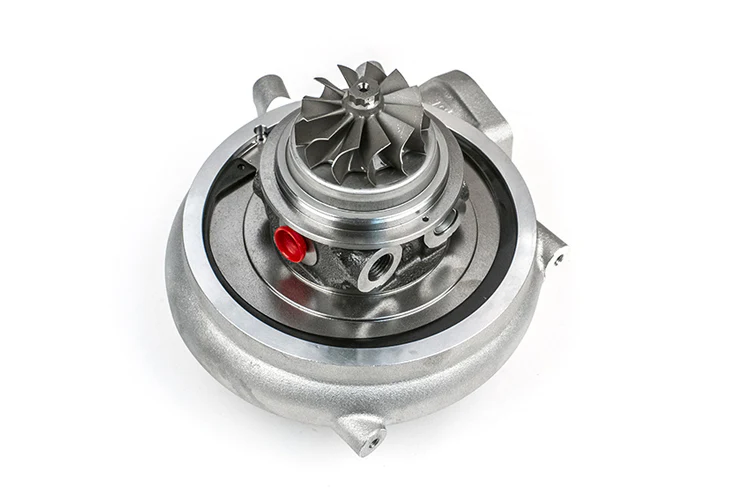

This super core assembly includes the compressor housing and wheel as pictured. The FP 71HTA delivers outstanding performance for autocross, track day, and street applications, providing responsive boost across the entire RPM range. All Forced Performance turbochargers are custom-built to order in their North Texas facility.
