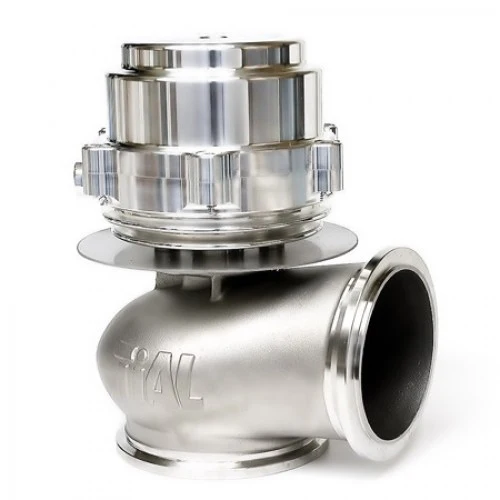

TiAL 005133 External Wastegate Bar - V60 60mm 1.29 Silver

The TiAL Sport V60 is the largest wastegate in the TiAL lineup, featuring a massive 60mm valve design engineered for maximum flow capacity and precision boost control in the most demanding turbocharged applications. This professional-grade external wastegate is a proven favorite in both drag racing and road racing industries, delivering dead-on boost accuracy from the burnout box to the finishing line at Circuit de la Sarthe.

Premium Construction and Materials:

• High-temperature NiCrFe based alloy valve with 347SS stainless steel valve housing for extended service life
• Nitronic 60 stainless steel valve seat and bushing for superior wear and galling resistance
• High-temperature silicone Nomex reinforced actuator diaphragm
• 17-7 PH stainless steel actuator spring maintains consistent pressure up to 900°F (483°C)
• CNC machined billet aluminum actuator housing with silver anodized finish
• All stainless steel hardware and 304L mating weld flanges

Performance Features:

• Flows 330 CFM at 1 PSI differential pressure
• 1.29 BAR (18.71 PSI) base spring pressure included
• V-Band inlet and outlet connections for gasket-free, leak-proof sealing
• Racing valve stem with wear coating resistant to corrosive lead oxides from racing fuels
• Optimized actuator-to-valve area ratio for maximum control and wide dynamic flow range

Complete Kit Includes:

• V60 wastegate assembly with silver actuator
• V60 valve seat
• Inlet and outlet V-Band clamps
• Inlet and outlet flanges
• Two TiAL air fittings with copper washers
• Stainless steel hardware

Engineered for high-boost, large turbo applications where reliability and precision are non-negotiable. Race-proven construction meets exacting manufacturing standards to deliver consistent performance under extreme conditions.
