TiAL 005111 External Wastegate Bar Purple - V50 50mm 1.49

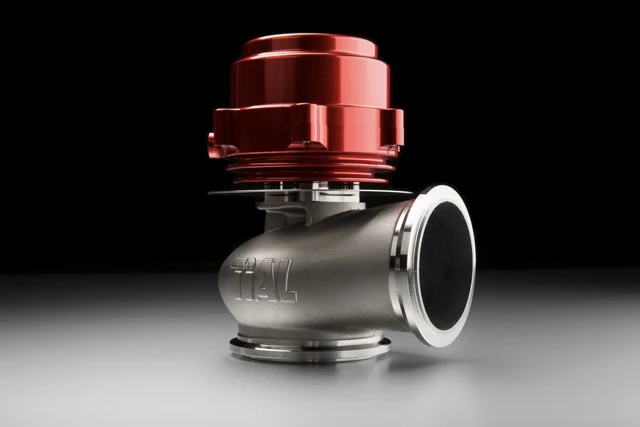

The TiAL V50 External Wastegate delivers precision boost control for high-performance turbocharged applications. Sharing the same form factor with the legendary V60, the V50 offers a smaller valve size for applications that are sensitive to EMAP-induced valve lift. This 50mm wastegate features a 1.49 bar (21.61 PSI) base pressure spring with a purple anodized actuator housing.

Key Features:

• Constructed from high temperature alloys for the valves and lower housings, CNC machined billet aluminum actuator housings and Nitronic 60 valve guides and seats
• 17-7 PH stainless steel actuator spring capable of consistent pressure at elevated temperatures
• High temperature silicone reinforced actuator diaphragm
• Mating weld flanges are 304L stainless steel
• Includes SS Band V-clamps, flanges, and CNC machined air fittings
• M10 air signal ports for easy install

This high flow 50mm wastegate will control boost with dead on accuracy in the most demanding situations and is a favorite in the drag racing and road racing industries. The purple anodized actuator housing provides both lightweight performance and distinctive styling.
