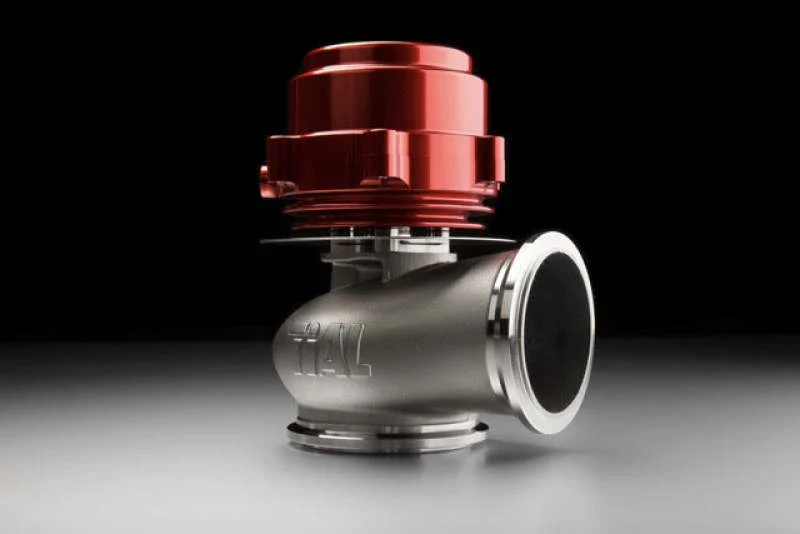

TiAL 005107 External Wastegate Bar - V50 50mm 1.4 Red

The TiAL 005107 V50 External Wastegate is a high-performance 50mm wastegate designed for precision boost control in demanding turbocharged applications. Rated at 1.4 Bar (20.3 PSI) spring pressure, this wastegate features a red anodized CNC-machined billet aluminum actuator housing that combines lightweight construction with exceptional durability.

Key Features:

• 50mm high-flow valve for accurate boost control in high-performance applications
• High-temperature alloy valve with stainless steel valve housing for extended service life
• CNC-machined billet aluminum actuator housing anodized in red
• Nomex-reinforced silicone diaphragm for high-temperature reliability
• 17-7 PH stainless steel actuator spring maintains consistent pressure at elevated temperatures
• Nitronic 60 stainless steel valve seats and bushings for superior wear and galling resistance
• TiAL-specific valve stem coating with wear-resistant properties
• Optimized actuator-to-valve area ratio for maximum control and wide dynamic flow capacity

What's Included:

• V50 wastegate assembly with 1.4 Bar (20.3 PSI) spring
• Stainless steel V-band clamps and flanges
• CNC-machined stainless steel and aluminum air fittings

The V50 shares the same compact form factor as the legendary V60 but offers a smaller valve size ideal for applications sensitive to exhaust manifold pressure-induced valve lift. Widely used in drag racing and road racing, the TiAL V50 delivers dead-on boost accuracy in the most demanding situations where precision and reliability are essential.
