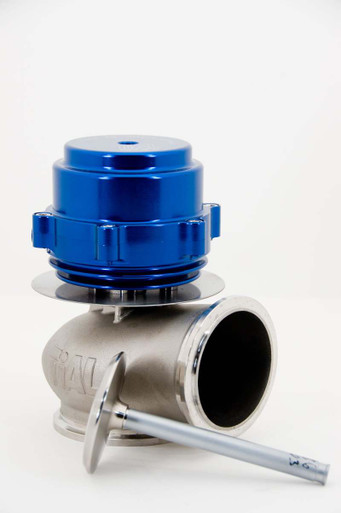

TiAL 005099 V50 50mm External Wastegate 1.31 Bar (19.0 PSI) Blue

The TiAL Sport V50 is a high-performance 50mm external wastegate engineered for precision boost control in the most demanding motorsport and performance street applications. This unit (MPN: 005099) is set to a spring base pressure of 1.31 Bar (19.0 PSI) and features an anodized blue billet aluminum actuator housing.

The V50 is a benchmark product in both drag racing and road racing circles, delivering dead-accurate boost control under extreme conditions. It is constructed using a proprietary high-temperature alloy lower housing, with Nitronic 60 valve guides and seats chosen specifically for their exceptional resistance to corrosion, wear, and galling.

Key Features:

• 50mm valve diameter for high-flow boost control
• 1.31 Bar (19.0 PSI) included actuator spring
• Blue anodized CNC-machined billet aluminum actuator housing
• 17-7 PH stainless steel actuator spring for consistent pressure at elevated temperatures
• High-temperature alloy valve and lower housing construction
• Nitronic 60 valve guides and seats for superior wear and galling resistance
• High-temperature silicone reinforced actuator diaphragm
• V-band clamp flanges included for easy installation and sealing
• Optimized actuator-to-valve area ratio for maximum control and wide dynamic flow capacity
• Designed and manufactured in the USA

The TiAL V50 external wastegate is a proven choice for turbocharged builds requiring reliable, repeatable boost pressure management. Whether used in a street performance build or a dedicated race application, the V50 delivers the precision and durability TiAL Sport is known for.
