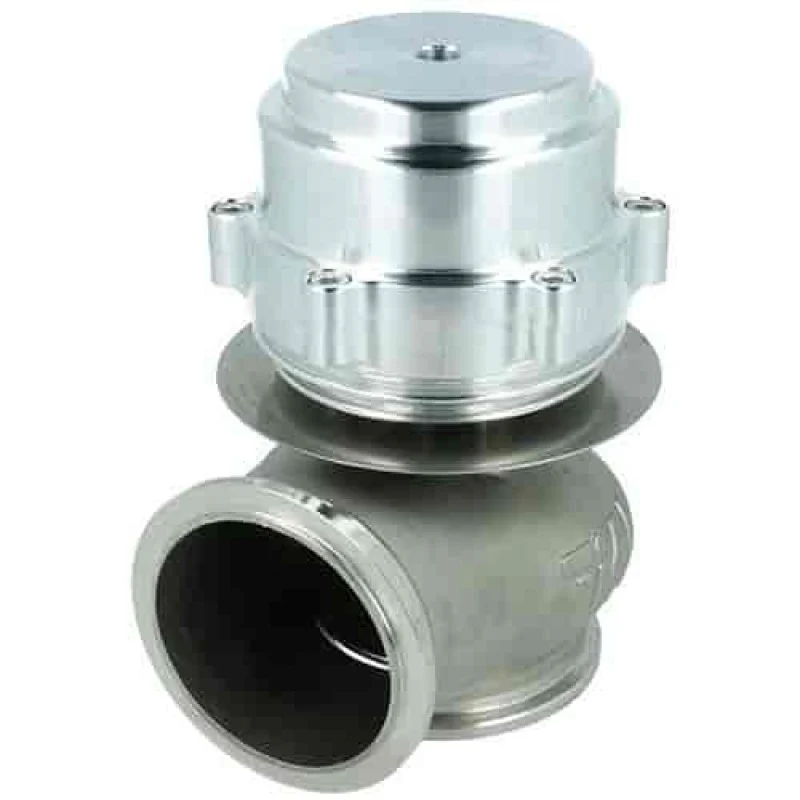

TiAL 005098 External Wastegate Bar - V50 50mm 1.31 Silver

The TiAL Sport V50 50mm external wastegate delivers precision boost control for high-performance turbocharged applications. This premium wastegate features a 1.31 bar (19.0 PSI) spring and silver anodized actuator housing, combining dead-accurate boost control with lightweight construction.

Construction and Materials:

• CNC-machined billet aluminum actuator housing with silver anodized finish
• High-temperature alloy valve and lower housing for extreme durability
• Nitronic 60 valve guides and seats resist corrosion, wear, and galling
• 17-7 PH stainless steel actuator spring maintains consistent pressure at elevated temperatures
• High-temperature silicone reinforced actuator diaphragm
• Stainless steel valve seat and valve bushing

Performance Features:

• 50mm high-flow valve design controls boost with precision in demanding conditions
• Optimized actuator-to-valve area ratio provides maximum control and wide dynamic flow capacity
• 1.31 bar (19.0 PSI) base spring pressure
• Proven performance in drag racing and road racing applications

What's Included:

• Stainless steel band V-clamps and flanges
• CNC-machined stainless steel and aluminum air fittings

The TiAL V50 shares the same form factor as the legendary V60 but offers a smaller valve size for applications sensitive to exhaust manifold pressure-induced valve lift. Ideal for precision-tuned turbo systems requiring reliable, repeatable boost control.
