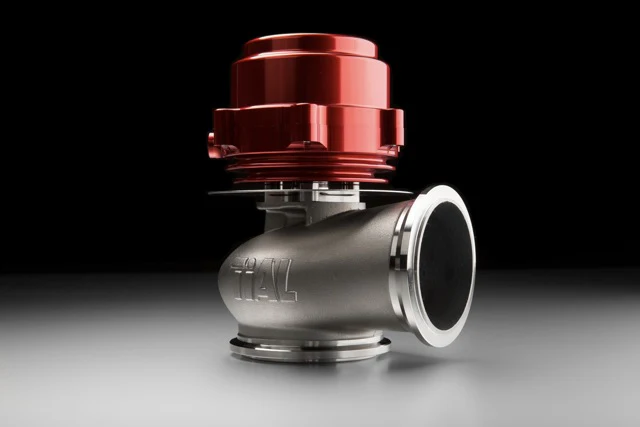

TiAL 005037 V50 Wastegate 50mm External 0.86 Bar Red

The TiAL Sport V50 Wastegate is a high-performance 50mm external wastegate designed for precision boost control in turbocharged applications. This particular unit features a 0.86 bar (12.47 PSI) spring and comes with a red anodized actuator housing for a distinctive appearance.

Construction and Materials:

• High-temperature alloy valve and lower housing for extreme durability
• CNC-machined billet aluminum actuator housing in red anodized finish
• Nitronic 60 valve guides and seats for superior wear and galling resistance
• 17-7 PH stainless steel actuator spring maintains consistent pressure at elevated temperatures
• Stainless steel valve seat and valve bushing
• High-temperature silicone reinforced actuator diaphragm

Key Features:

• 50mm valve diameter provides high flow capacity
• Dead-on accurate boost control in demanding conditions
• Optimized actuator-to-valve area ratio for maximum control and wide dynamic flow capacity
• 304L stainless steel weld flanges included
• SS band V-clamps for secure mounting
• M10 air signal ports for easy installation
• All stainless steel hardware and CNC-machined aluminum air fittings

The V50 shares the same form factor as the legendary V60 but offers a smaller 50mm valve size for applications sensitive to exhaust manifold pressure-induced valve lift. A favorite in both drag racing and road racing industries, the TiAL V50 is designed and manufactured in the USA to the highest standards. This wastegate is ideal for high-performance turbocharged engines requiring precise boost regulation and long-term reliability.
