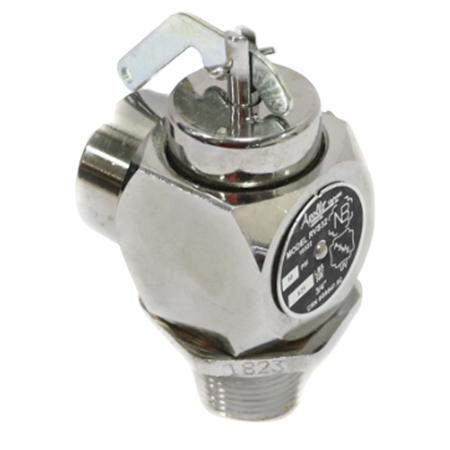

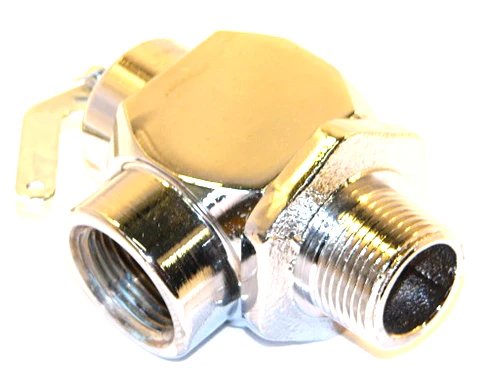

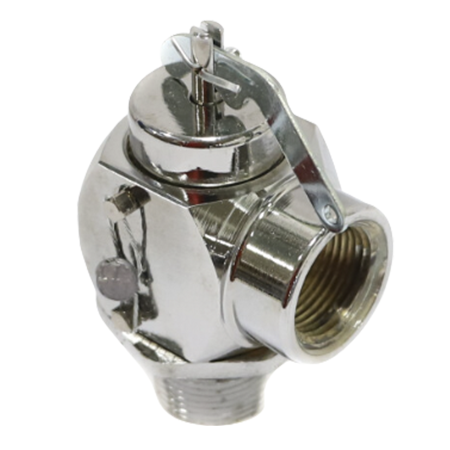

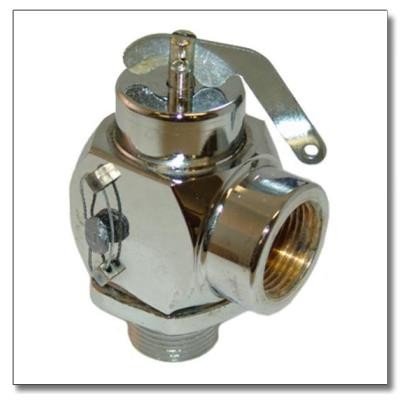

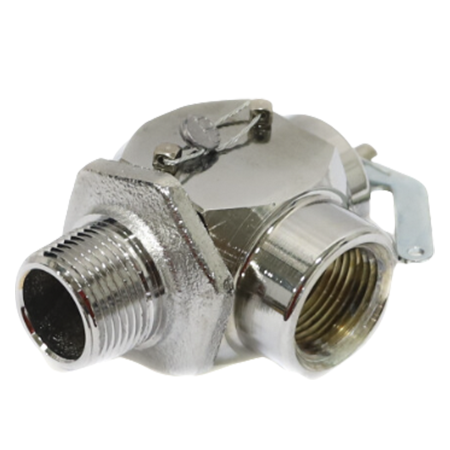

Conbraco 10-322-P50 Steam Safety Relief Valve 3/4 Inch 50 PSI Polished Chrome

The Conbraco 10-322-P50 is a precision-engineered steam safety relief valve designed to protect boilers, pressure vessels, and steam systems from dangerous overpressure conditions. This ASME Section VIII certified valve features a 3/4 inch male NPT inlet and 3/4 inch female NPT outlet connection, making it suitable for a wide range of commercial and industrial steam applications.

Key Specifications:

• Set pressure: 50 PSI (3.45 bar)
• Capacity: 625 pounds per hour at maximum temperature
• Maximum temperature service: 312°F (156°C)
• Connection size: 3/4 inch NPT (male inlet x female outlet)
• Finish: Polished chrome plated for corrosion resistance
• Bronze body construction for durability
• ASME Section VIII certified for pressure vessel applications

Applications:

• Steam pressure vessels and autoclaves
• Commercial sterilizers and pressure cookers
• Industrial boiler overpressure protection
• Food service equipment steam systems
• Laboratory and medical sterilization equipment

The polished chrome finish provides excellent corrosion resistance and a professional appearance, while the bronze construction ensures long-lasting performance in demanding steam service environments. The valve must be installed in a vertical upright position for proper operation and features a spring-loaded mechanism that automatically opens when system pressure exceeds the 50 PSI set point, safely venting excess pressure to prevent equipment damage or failure.
