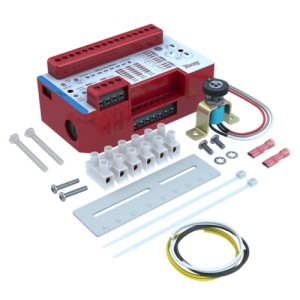

Bray 70A012-22922536 24V Servo NXT Control Board Kit for Series 70 Electric Actuators

The Bray 70A012-22922536 is a 24V Servo NXT modulating control board kit designed for precise valve positioning in Bray Series 70 electric actuators. This kit is specifically compatible with actuator models 70-24-0061, 70-24-0201, and 70-24-0501, providing advanced servo control for HVAC, building automation, and industrial flow control applications.

Key Features:

• Single Finger Technology (SFT) menu-driven pushbutton programming with LED confirmation of all settings
• Equipped with advanced servo control algorithms for superior motion precision
• Real-time status and health monitoring via built-in backlit blinking Bray logo
• Accepts multiple analog control signals for seamless integration with building automation systems
• Essential for efficient motion control and precision positioning of servo motors
• Durable construction suitable for harsh environments

This genuine Bray replacement control board enables modulating control, allowing actuators to position valves at any point between fully open and fully closed based on input signals. The Servo NXT controller provides proportional control with adjustable parameters including deadband, speed control, and fail-safe positioning, making it ideal for temperature control, pressure regulation, and flow modulation applications in commercial HVAC and industrial automation systems.
