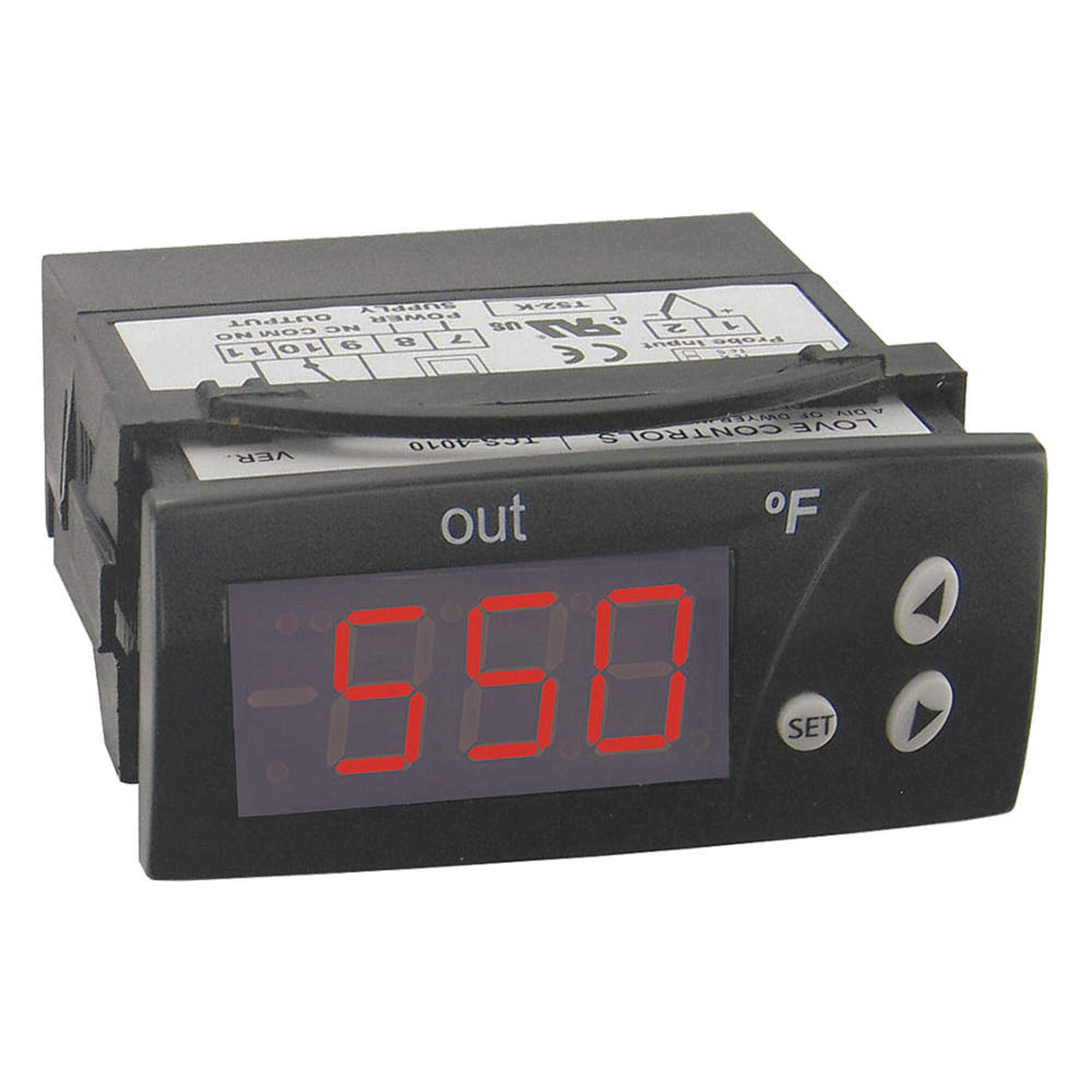

Dwyer Instruments TCS-4010 Digital Thermocouple Temperature Switch J/K/S Type 110V Red Display

The Dwyer Instruments Series TCS is a rugged, dual-alarm thermocouple temperature switch designed to provide reliable temperature monitoring and control for demanding environments like food service and industrial automation. This model accepts Type J, K, or S thermocouple inputs with a probe range of 32 to 999°F (0 to 700°C for Type J, 0 to 999°C for Type K or S).

Key Features:

• Wide temperature range with two selectable alarm sets and internal buzzer indicating alarm condition or error
• Bright red 3-digit LED display showing temperature and output status
• SPDT relay output rated 16A @ 240 VAC resistive with 1 HP rating
• User-definable parameters including set point, heating/cooling regulation, cycle time, alarm configuration, load status, and ambient probe adjustment
• Password protection and error/alarm messaging
• IP64-rated front panel for protection against splashes and dust
• ±1% full scale accuracy with 1° resolution
• Nonvolatile memory backup for parameter retention

Configuration key available separately to quickly program multiple units. Includes fitting clip for panel mounting, gasket, rear terminal cover, and instruction manual. Agency approvals include CE, cUR, and UR certifications.
