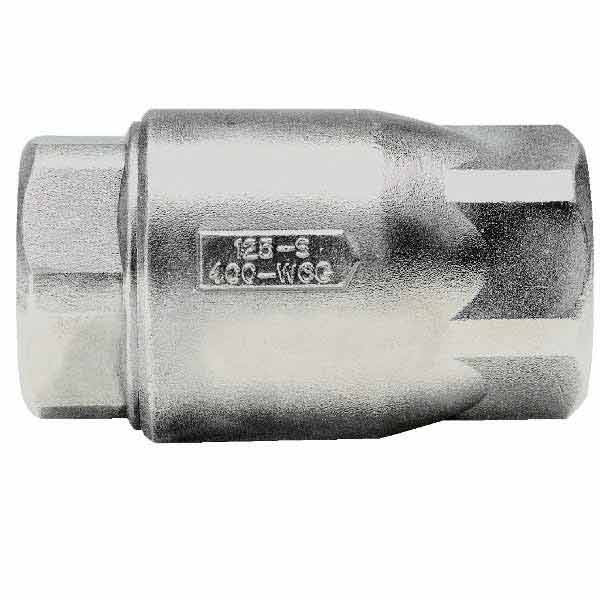

Conbraco 62-101-01 Stainless Steel Ball Cone Check Valve 1/4" NPT

The Conbraco 62-101-01 is a 1/4 inch stainless steel ball cone check valve designed to restrict fluid flow to one direction in plumbing, HVAC, and industrial applications. Part of the Apollo 62-100 series, this Class 125 valve features female NPT threaded connections on both ends for easy installation.

Key Features:

• 316 stainless steel body and trim per ASTM A-351 standards for superior corrosion resistance and durability
• Spring-loaded RPTFE (reinforced polytetrafluoroethylene) ball cone for fast, reliable seating action
• Center-guided design eliminates need for radial alignment during installation
• Straight-through flow path minimizes velocity changes and pressure drop
• Maximum pressure rating: 400 PSIG CWP (cold working pressure) at 100°F
• Steam service rating: 125 PSIG SWP at 350°F maximum temperature
• Flow capacity: 0.85 GPM
• 1/4 inch female NPT connections on both ends

This check valve automatically prevents backflow when pressure reverses or stops, making it ideal for water lines, steam systems, air lines, and other fluid applications where one-way flow control is required. The compact design and durable stainless steel construction ensure long-lasting performance in demanding environments.
