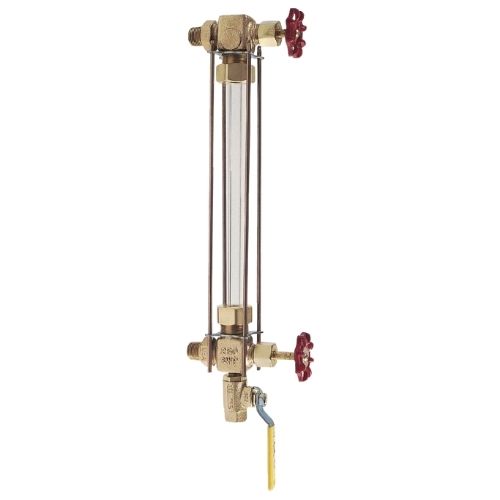

Conbraco 24-353-00 Bronze Liquid Level Gauge 3/4" NPT with Aluminum Wheel

The Conbraco 24-353-00 is a 3/4" heavy pattern bronze liquid level gauge with 3/4" x 16" glass designed for direct reading liquid level monitoring in industrial applications. This heavy pattern bronze gauge features robust construction and advanced safety mechanisms to ensure precise measurements and long-lasting performance.

Key Features:

• Conforms to ASME check requirements with automatic ball checks in upper and lower arms
• Heavy pattern bronze construction for durability
• Features aluminum wheel type handle
• Includes 5/16" diameter full-blow ball valve with safety handle
• PTFE reinforced gauge glass gaskets and stem packing are standard
• 3/4" NPT male pipe connection
• High pressure gauge glass and gaskets are standard
• Bronze ball valve drains are standard
• CRN Registered

Specifications:

• Pipe Size: 3/4"
• Glass Outside Diameter and Length: 3/4" x 16"
• Pressure Rating: 250 psig at 400°F and 500 psig at 100°F
• Wheel Type: Aluminum
• Weight: 490 lbs per 100 units (approximately 4.9 lbs per unit)

For a complete unit, this gauge set includes upper and lower valves; tubular gauge glass and protection rods are sold separately. This model is compatible with the Conbraco 20-001-12 repair kit for maintenance and servicing.
