BD Diesel 1063014 Build-It Dodge Transmission Rebuild Kit Stage with Torque Converter - 48RE 4

The BD Diesel Build-It Dodge 48RE Stage 4 Master Kit provides serious transmission builders with professional-grade components for a complete performance rebuild. Designed for 2003-2007 Dodge trucks with the 48RE transmission, this comprehensive kit includes the same high-performance parts BD uses in their own transmission builds, delivering maximum durability and power handling capability.

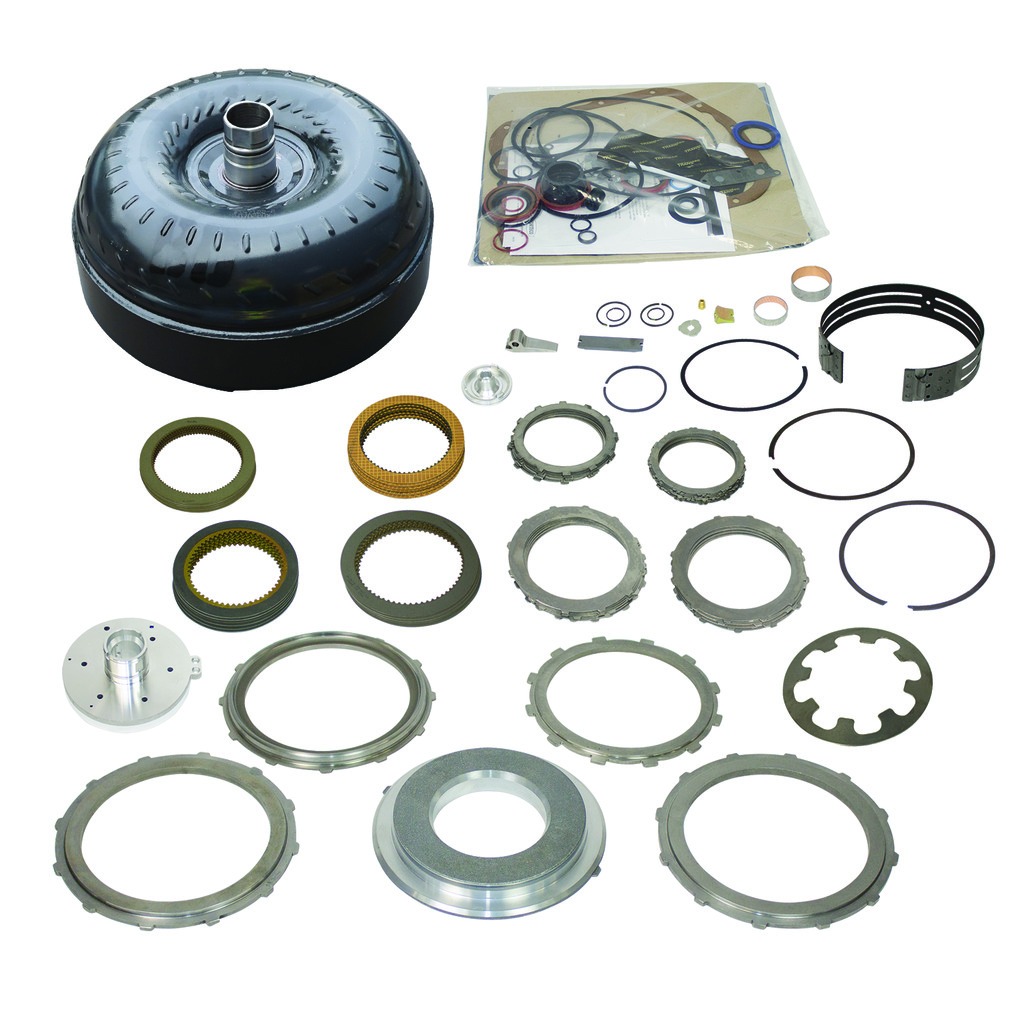

Complete Stage 4 Master Rebuild Kit:

• Raybestos high-temperature/high-energy band for superior holding power
• Billet band anchor and billet dual-ring accumulator piston for increased strength
• Bronze bushings with dimples for improved lubrication (front clutch drum 0.85, pump)
• Premium friction discs: Allomatic front and overdrive, Borg Warner overdrive direct and rear forward
• 4.2 ratio shifter bracket and lever kit
• Complete overhaul gasket kit with all necessary seals
• Precision-machined BD pressure plates (forward rear beveled, overdrive brake front/rear)
• Machined BD direct clutch front piston
• Multiple snap ring options for proper clutch clearancing (.062, .074, .088)
• Oversized steel plates for increased capacity
• HD thrust washers and piston retainer components

BD ProForce 3D Torque Converter Included:

The included multi-disc torque converter features BD's exclusive 3D design with CNC-machined billet cover to prevent warping and ensure proper balancing. The stamp-forged one-piece cover maintains factory height while increasing strength and rebuildability. Self-centering trapezoid clutch teeth provide superior alignment and reduced wear, while the engineered clutch piston and damper assembly delivers smooth engagement with heavy-duty springs to absorb shock. Thrust bearings replace plastic washers for longevity, and the riveted piston ensures precise alignment. The cast stator maximizes torque multiplication, and furnace-brazed turbine fins improve fluid coupling efficiency. This converter is 12 lbs lighter than comparable units while offering enhanced stall characteristics perfect for street and towing applications.

Installation Note: Billet input shaft strongly recommended for use with the ProForce 3D torque converter to handle increased torque capacity.

Warranty Coverage: Torque converter includes 36-month/150,000-mile parts warranty with 12-month/12,000-mile labor coverage. Build-It kit components covered for 12 months/12,000 miles parts only. Race use not covered. This product is legal for sale and use in all 50 states.
