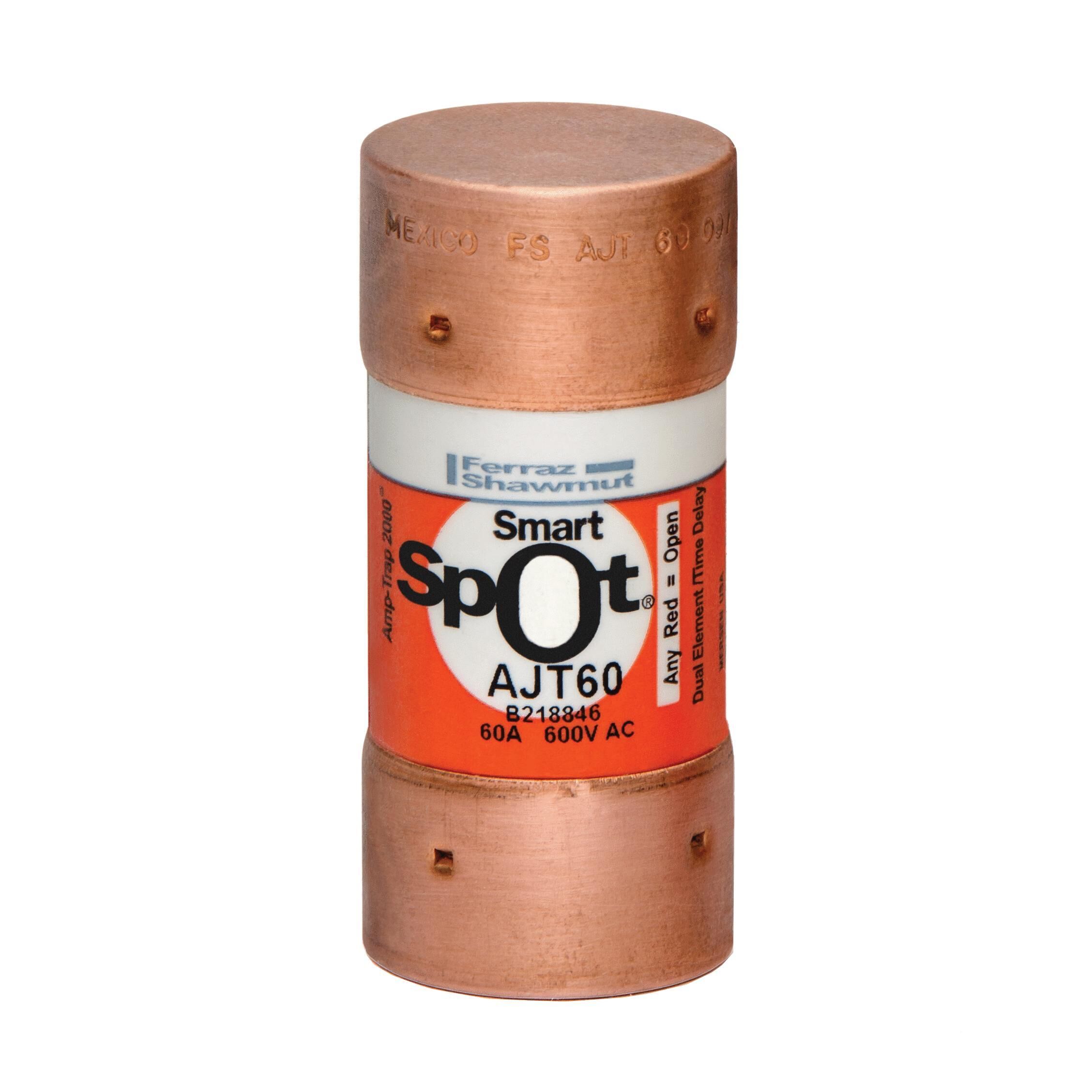

ABB AJT60 Class J Time Delay Fuse 60 Amp 600V

The ABB AJT60 is a 60 amp, 600V AC Class J time delay fuse designed for electrical protection in industrial and commercial applications. This Amp-Trap 2000 fuse features a SmartSpot visual open fuse indicator and provides IEC Type 2 No Damage protection to main, feeder, and branch circuits for all types of loads, requiring only half the mounting space needed for 600VAC Class RK fuses.

Key Features:

• 600 VAC, 500 VDC voltage rating with 200 kA interrupt rating
• Ferrule terminal with clip mounting and cylindrical fiberglass body
• Time-delay characteristics ideal for handling typical motor and transformer inrush currents
• SmartSpot indicator for blown fuse identification
• Dual element design measuring 1-1/16 inch diameter x 2-3/8 inch length
• Extremely current limiting for low peak let-thru current

This Class J time delay fuse is UL and CSA listed and features a rejection-style design that prevents replacement errors. Terminal material is tin-plated copper with ferrule-type connections, ensuring reliable electrical contact. The fiberglass body construction provides dimensional stability in harsh industrial environments.
