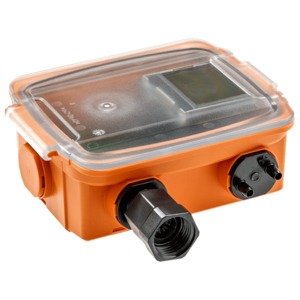

Belimo 22ADP-584L Differential Air Pressure Sensor 0-10 Inch WC LCD 4-20mA

Manufacturer

Part Number

22ADP-584L
Sale Price

$258.80

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo 22ADP-584L is an active differential air pressure sensor designed for precise monitoring of differential pressure in air and other non-flammable, non-aggressive gases. Powered by AC/DC 24V and featuring a piezo measuring element, this sensor is well-suited for demanding HVAC and building automation applications including air filter monitoring, fan performance tracking, industrial cooling air cycles, and control of air and fire dampers.

Key Features:

  • Wide Measuring Range: -0.4 to 10 inch WC (-100 to 2500 Pa) with eight DIP-switch-selectable sub-ranges (0–0.4", 0–1", 0–2", 0–4", 0–6", 0–8", 0–10") for application flexibility
  • Dual Analog Outputs: One voltage output (0–5 V or 0–10 V, field-selectable) and one current output (4–20 mA) for versatile BAS/DDC integration
  • LCD Display with Backlight: Integrated 1.14 x 1.38 inch (29 x 35 mm) LCD with backlight displays live pressure readings in Pa or inch WC (programmable units)
  • Piezo Sensor Technology: Provides high accuracy — ±0.02 inch WC for ranges ≤2 inch WC, and ±0.04 inch WC for ranges >2 inch WC
  • NEMA 4X / IP65 Enclosure: Orange polycarbonate housing rated for wet and dusty environments; UL 2043 plenum compliant
  • Bidirectional Measurement: Capable of unidirectional and bidirectional differential pressure measurement
  • Broad Pressure Overpressure Protection: Burst pressure rated to 160 inch WC (40 kPa)
  • Pluggable Spring-Loaded Terminal Block: Max. 2.5 mm² wire; cable gland with strain relief for Ø6–8 mm cables
  • Belimo Assistant App Compatible: Can be operated and parameterized via the Belimo Duct Sensor Assistant App (Bluetooth dongle sold separately)

Electrical Specifications:

  • Nominal Voltage: AC/DC 24 V (AC range: 19–29 V / DC range: 15–35 V)
  • Power Consumption: 4.3 VA (AC) / 2.3 W (DC)
  • Voltage Output: 0–5 V or 0–10 V (min. load resistance 10 kΩ)
  • Current Output: 4–20 mA (max. load resistance 500 Ω)
  • Cable Entry: Cable gland with strain relief; 1/2" NPT conduit adapter included

What's Included:

  • Mounting plate
  • PVC tube (2 m / approx. 6 ft)
  • 2 duct connectors (plastic)
  • Dowels and screws
  • 1/2" NPT conduit adapter

The Belimo 22ADP-584L is a dependable, multi-range differential pressure transmitter built for professional HVAC and building controls installations. Its combination of dual analog outputs, an integrated backlit LCD, and a rugged NEMA 4X housing makes it a versatile and low-maintenance choice for pressure sensing across a wide range of system configurations. Backed by Belimo's 5-year warranty.
