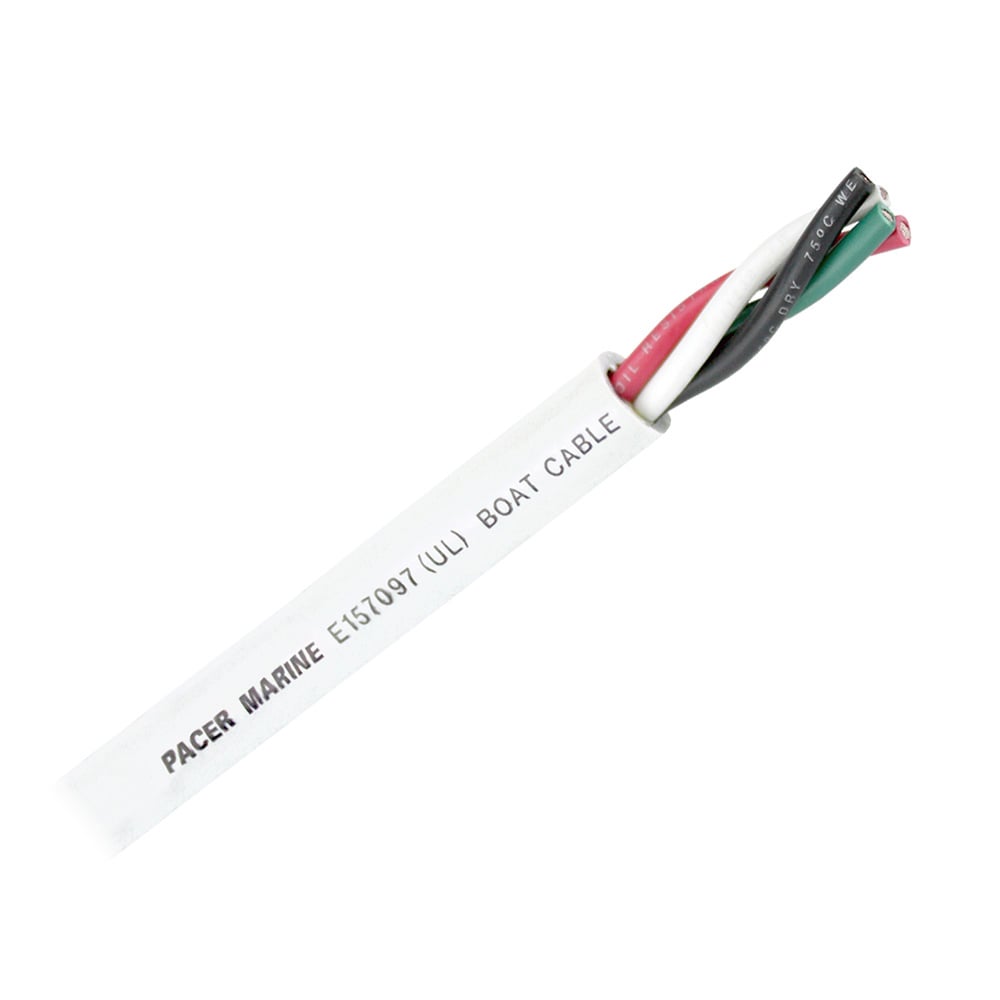

Pacer Performance WR12/4-100 Marine Round 4 Conductor Cable 100ft 12/4 AWG Grey

Pacer Performance's WR12/4-100 is a premium 100-foot marine-grade round boat cable designed specifically for installation in confined spaces like boat hulls, sailing spars, poling platforms, and t-tops. This 12 AWG 4-conductor cable features omnidirectional flexibility, making it ideal for tight marine and RV applications where traditional flat cables cannot maneuver.

Key Features:

• Type III Class K finely-stranded tinned copper conductors (65/.0100 stranding) for superior corrosion resistance in marine environments
• Four color-coded conductors (black, green, red, white) for easy circuit identification
• Flexible grey PVC jacket and insulation rated for -20°C to 105°C operation
• Round cable design allows bending in any direction for simplified routing through bulkheads and tight spaces
• 600V voltage rating suitable for both AC and DC marine and RV wiring applications
• UL 1426 approved and meets ABYC E-11.16 and Coast Guard 33 CFR Part 183 standards
• Manufactured in Sarasota, Florida, USA with premium materials

Technical Specifications:

• Wire Gauge: 12 AWG
• Number of Conductors: 4
• Cable Length: 100 feet
• Nominal Cable Diameter: 0.560 inches
• Jacket Thickness: 0.045 inches per conductor
• Temperature Rating: 105°C dry, 75°C wet, 60°C oil
• Conductor Material: Annealed fine stranded tinned copper (ASTM B172 Class K)
• Jacket Color: Grey

This marine cable is engineered to withstand the harsh marine environment including frequent flexing, vibration, and exposure to acid, alkali, abrasion, flame, gasoline, oil, and moisture. The round configuration combined with highly flexible PVC insulation makes installation significantly easier than flat cables, while the tinned copper construction ensures long-term reliability and corrosion resistance. RoHS compliant.
