Wiseco KE290M825 VW 2.0L ABF 16V Forged Piston Set 82.5mm Bore +8cc Dome

The Wiseco KE290M825 is a high-performance forged piston set engineered for the Volkswagen 2.0L 16-valve ABF engine platform. Featuring an 82.50mm bore diameter, a 1.204-inch (30.58mm) compression height, and a +8cc dome, this set is purpose-built for naturally aspirated high-compression performance builds on the ABF engine.

Key Features:

• 82.50mm bore — standard bore size for the VW 2.0L ABF engine
• 1.204" (30.58mm) compression height for precise deck clearance
• +8cc dome design targeting elevated compression ratios (approx. 11.8:1)
• 21mm piston pin diameter
• ArmorGlide skirt coating — dry film lubricant reduces friction and minimizes piston noise in the bore
• Forged from high-strength aluminum alloy for superior durability under extreme conditions
• Offset piston pin design for quietest operation, matching OEM configuration

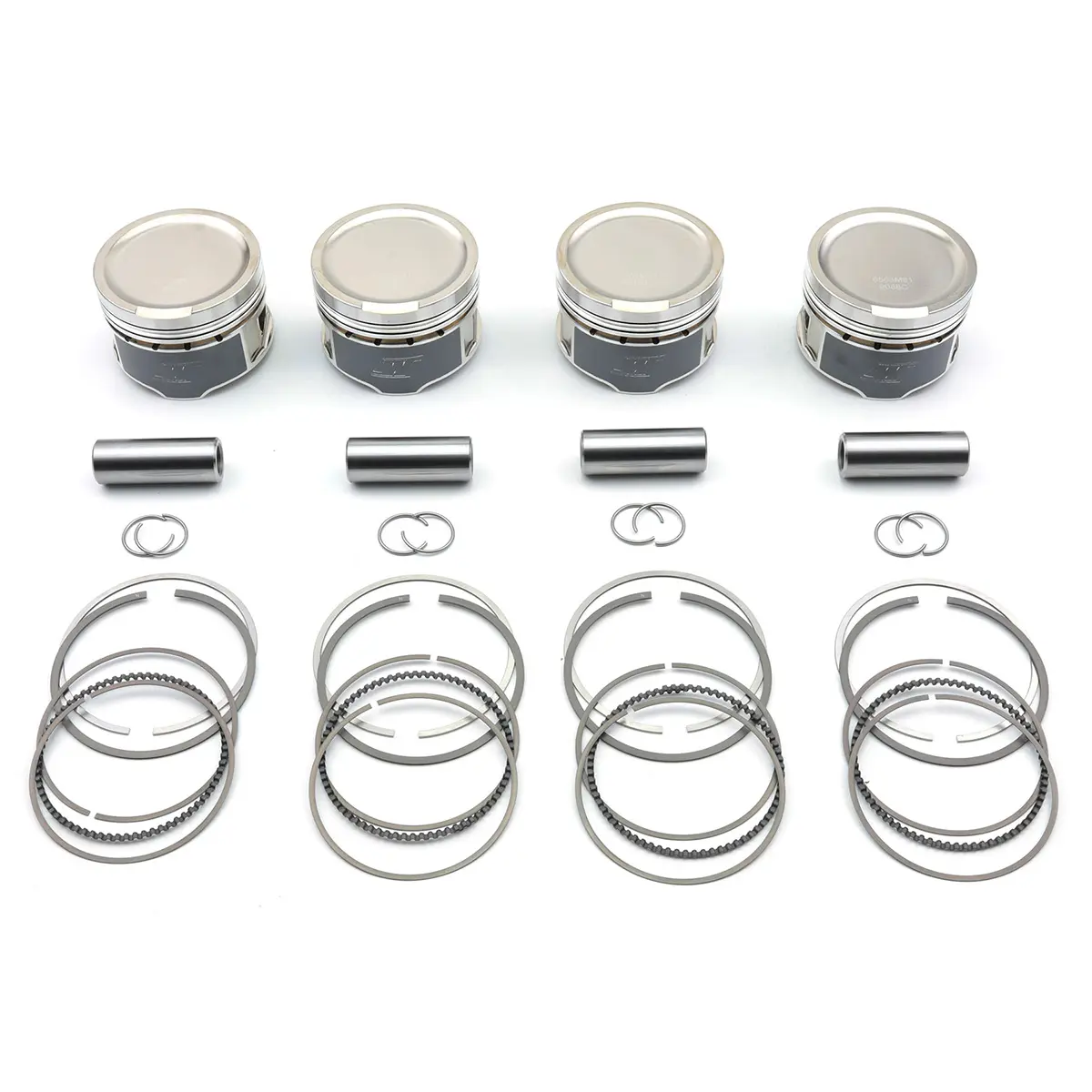

• Complete set includes 4 pistons, piston rings, wrist pins, and wire lock retainers

Wiseco pistons are engineered, forged, and machined at their facility in Mentor, Ohio, and are a trusted choice for motorsport and performance engine builders worldwide. The KE290M825 is ideal for VAG 2.0L 16V ABF applications including the VW Golf, VW Corrado, SEAT Ibiza, and SEAT Córdoba. Ring set part number: 8250XX.
