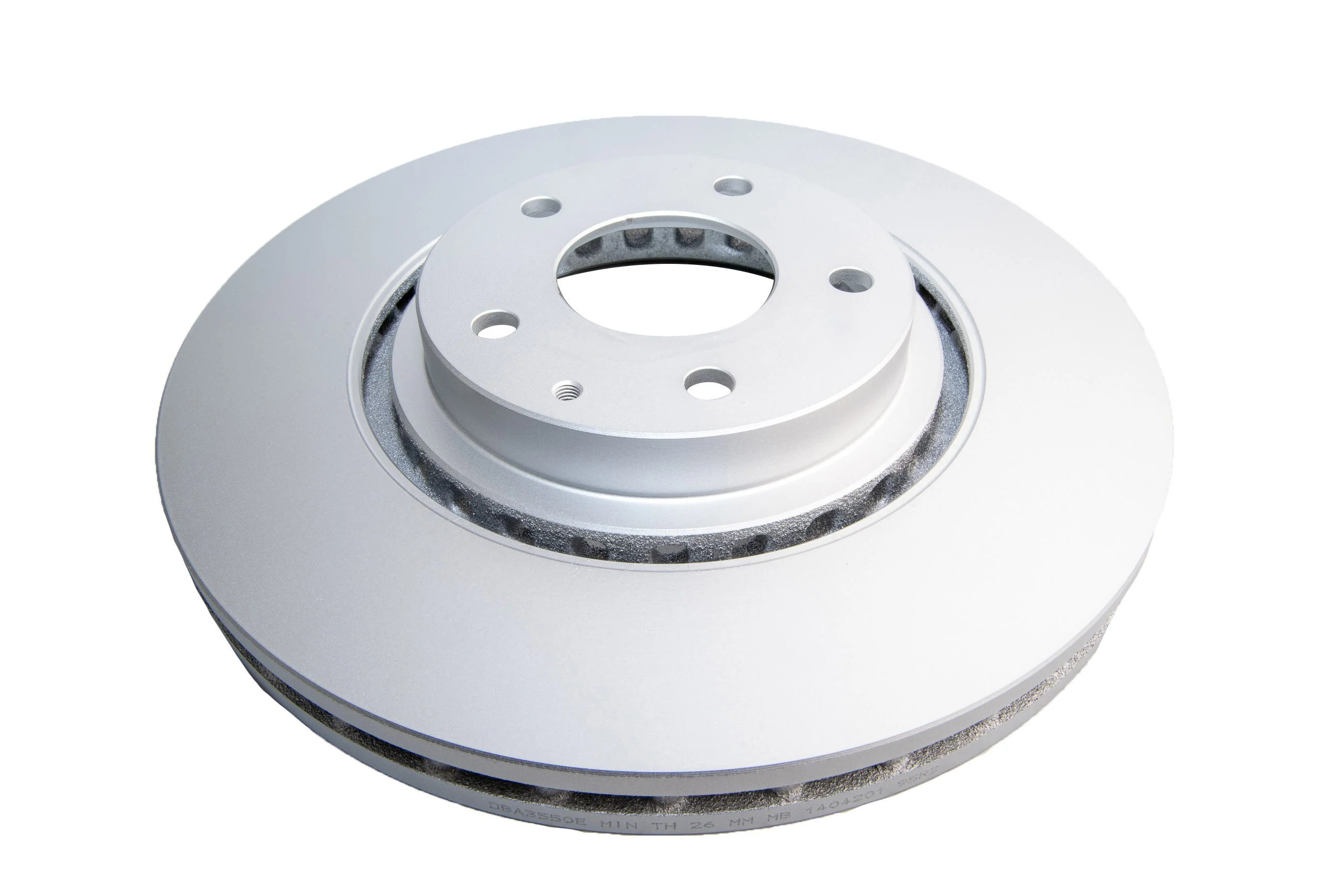

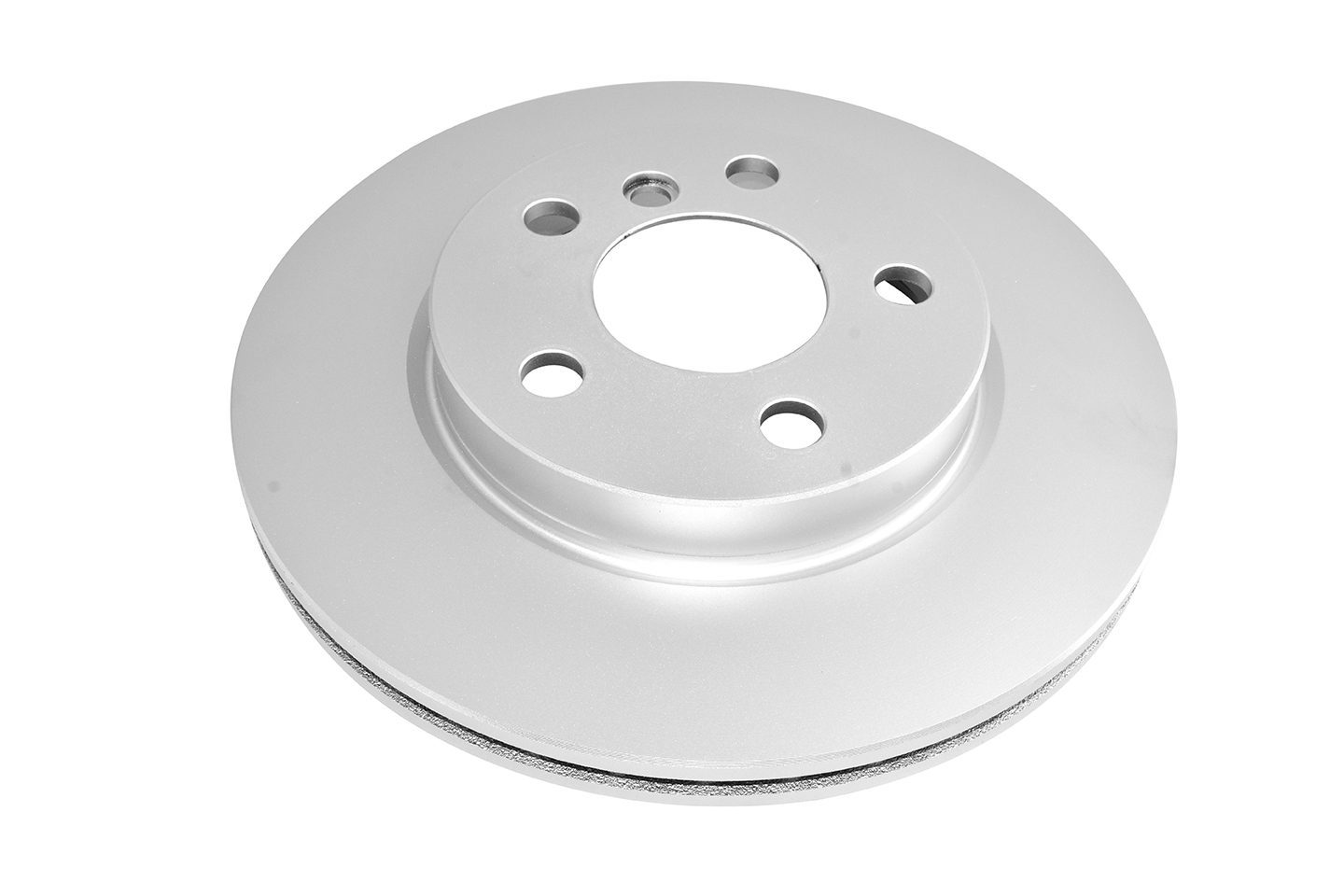

DBA DBA3219E Street Series En-Shield HC Brake Rotor

The DBA DBA3219E is a Street Series Hybrid Composite (HC) brake rotor featuring DBA's proprietary En-Shield corrosion protection coating. Engineered as a direct OE replacement, this rotor is designed for drivers who demand reliable, long-lasting braking performance without the hassle of pre-installation surface preparation.

En-Shield Coating Technology:

The En-Shield process applies a chromium-free, zinc/aluminium water-based coating to the entire rotor surface, which is then baked on for durability. This advanced treatment protects the rotor from rust and corrosion throughout its service life, keeping it looking clean and performing consistently without introducing any impurities to the braking surface.

Hybrid Composite (HC) Construction:

The DBA3219E uses a two-piece Hybrid Composite design, combining a cast iron braking surface (disc ring) with an aluminium or steel hat, permanently bonded together. This construction can reduce overall rotor weight by up to 15% compared to a conventional one-piece rotor, improving unsprung weight and handling response.

Key Features:

• En-Shield coating — zinc/aluminium corrosion-resistant treatment baked onto the entire rotor surface
• Hybrid Composite (HC) two-piece design — up to 15% lighter than traditional one-piece rotors
• Unique Kangaroo Paw vane design — up to 20% better heat dissipation for increased braking effectiveness and longer brake life
• CBN (Cubic Boron Nitride) machine-turned friction surface — minimises disc thickness variation and reduces the potential for brake pad knock and premature wear
• Centre-split core castings — improved heat transfer and thermal efficiency
• OE replacement fitment — direct bolt-on installation using factory hardware, no modifications required
• Street Series certified — built to meet or exceed OEM standards using DBA's 40+ years of braking expertise
• Recommended for daily drivers, light commercial, and SUV applications

The DBA3219E is backed by DBA's manufacturing warranty and is ideal for drivers seeking a premium, corrosion-resistant OE replacement rotor with the added weight-saving benefit of hybrid composite construction.
