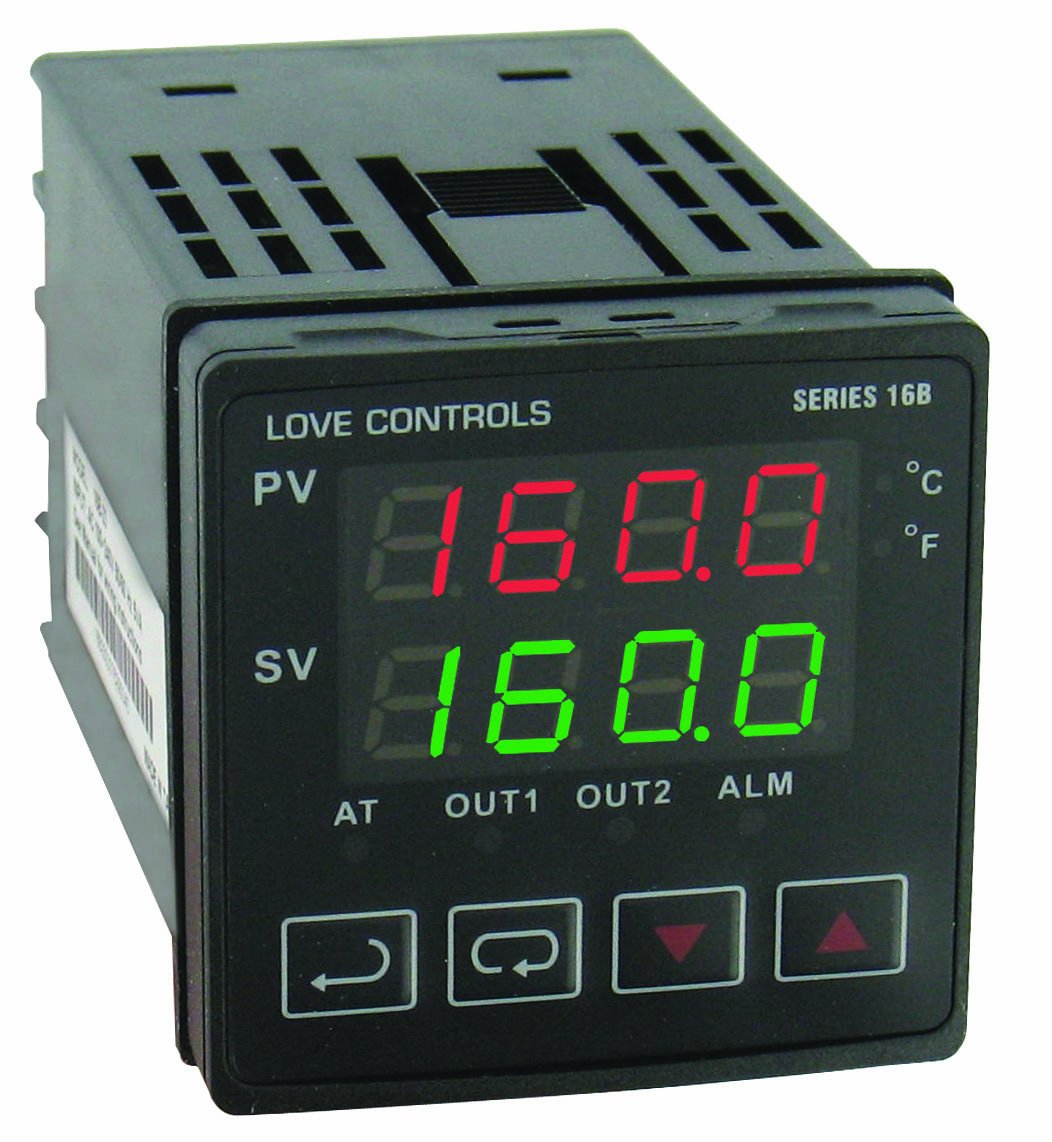

Dwyer Instruments 16B-33 1/16 DIN Temperature Process Controller with Dual Relay Outputs

The Dwyer Instruments 16B-33 is a precision 1/16 DIN temperature and process controller featuring two separate relay outputs for dual loop control in direct or reverse acting configurations. This versatile controller is ideal for applications such as boiler temperature control and damper control based on temperature or pressure.

Key Features:

• Dual LED displays provide local indication of process value and setpoint value
• Front panel indicators show output status, engineering scale, auto tuning and alarm status
• Multiple control methods including ON/OFF, PID, self-tune and manual tune
• PID control with 64 ramp/soak control actions
• Two additional alarm outputs standard, configurable using thirteen built-in alarm functions
• Built-in RS-485 interface for communication with PCs and PLCs
• Universal inputs accept thermocouple, RTD, and 4-20 mA signals
• Compact 1/16 DIN panel mount design

The Series 16B controller delivers precise monitoring and control for a wide range of industrial temperature and process applications, combining advanced control algorithms with user-friendly operation and flexible connectivity options.
