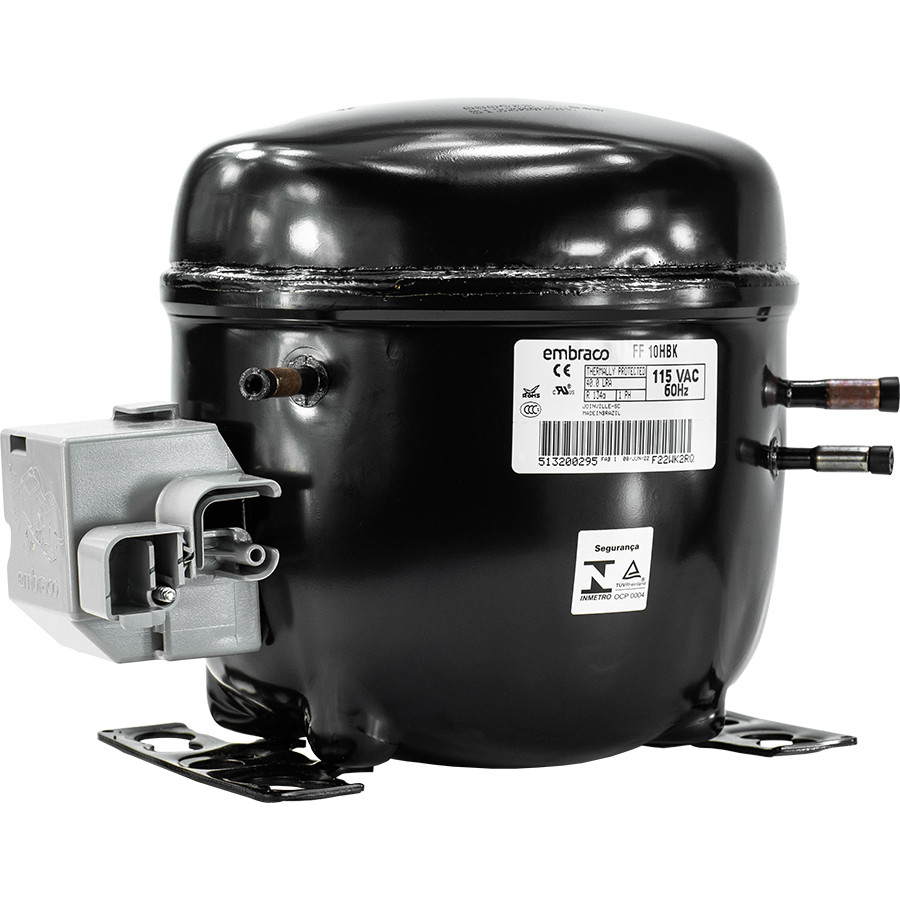

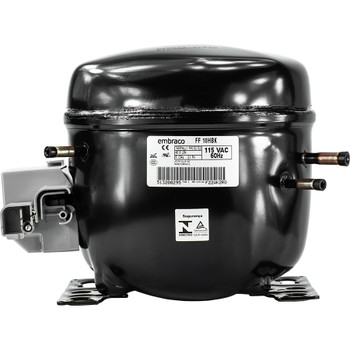

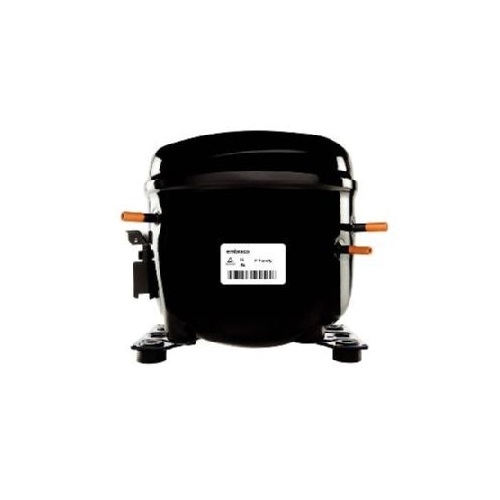

Embraco FF10HBK1 Refrigeration Compressor 1/4 HP R-134a 115V

The Embraco FF10HBK1 is a hermetically sealed reciprocating refrigeration compressor designed for household refrigeration and small commercial applications. This versatile 1/4 HP compressor operates on 115V single-phase power and uses environmentally-friendly R-134a refrigerant, making it ideal for food service equipment, vending machines, bottle coolers, ice machines, and other refrigeration systems.

Key Specifications:

• Horsepower: 1/4 HP (1/4+)
• Voltage: 115V, 60Hz, Single Phase
• Refrigerant: R-134a
• Cooling Capacity: 840 BTU/hr (Low Temp), 1973 BTU/hr (Medium Temp), 3530 BTU/hr (High Temp)
• Application: Low/Medium/High Back Pressure (L/M/HBP)
• Evaporating Temperature Range: -31°F to 59°F
• Discharge Connection: 1/4 inch ODS
• Suction Connection: 5/16 inch ODS
• Motor Type: RSIR/CSIR (Resistance Start Induction Run / Capacitor Start Induction Run)
• Locked Rotor Amps (LRA): 28.5 to 40
• Starting Torque: Normal
• Foot Mount Dimensions: 6.5" x 4.0"

Features and Benefits:

• Low-profile "silhouette" design allows for easy installation in compact spaces
• Ultra-quiet operation with minimal noise and vibration
• Hermetically sealed unit ships pre-filled with oil
• Includes rubber foot mounts for vibration dampening
• Direct replacement for multiple brands including Tecumseh, Sub Zero, Whirlpool, GE, and Electrolux
• All copper motor windings for durability and efficiency
• Positive lubrication system ensures reliable operation

Cross References: Replaces Tecumseh AEA1380YXA, Sub Zero 7002026, Whirlpool EGY80HLP/EGY90HLP, and Embraco FF10HBK. Compatible with relay 513506242 (RSIR) or 513506245 (CSIR), overload 13556533.

Note: Start capacitor (460-552 MFD/110 VAC) sold separately. Professional installation by a qualified HVAC technician is recommended.
