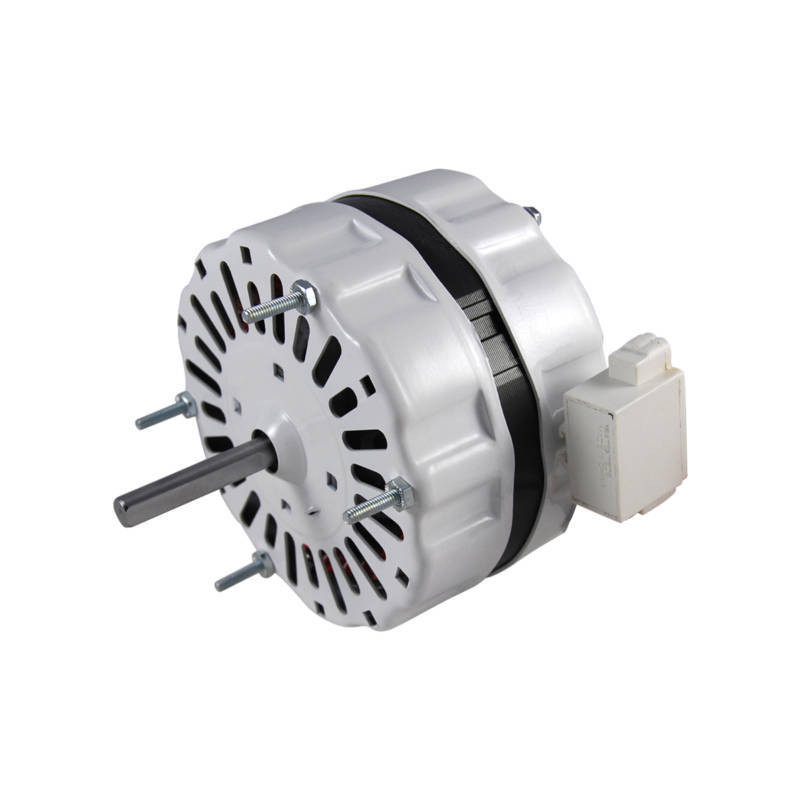

Packard 90520 Rooftop Ventilator Motor 1/16 HP 115V 1200 RPM

The Packard 90520 is a high-quality replacement motor designed specifically for Loren Cook rooftop ventilators and Gemini exhaust systems. This compact 5.12-inch diameter motor delivers 1/16 horsepower at 1200 RPM on 115 volts, drawing 1.5 amps to provide reliable ventilation performance.

Key Features:

• Permanently lubricated sealed sleeve bearings for maintenance-free operation
• Open enclosure design with automatic overload protection
• Permanent Split Capacitor (PSC) motor type with included 8µF 250VAC capacitor
• 3/8 x 2-1/4 inch shaft with 3-inch body length
• Thru-bolt mounting for secure installation
• Single-speed clockwise (CW) rotation
• 60 Hertz operation

OEM Cross-References: This motor replaces Loren Cook GC-520 and McMillan Electric A0812B2565, A0812B3806, making it an ideal direct replacement for worn or failed original equipment. The motor includes all necessary components for installation and is backed by industry-standard warranty protection.
