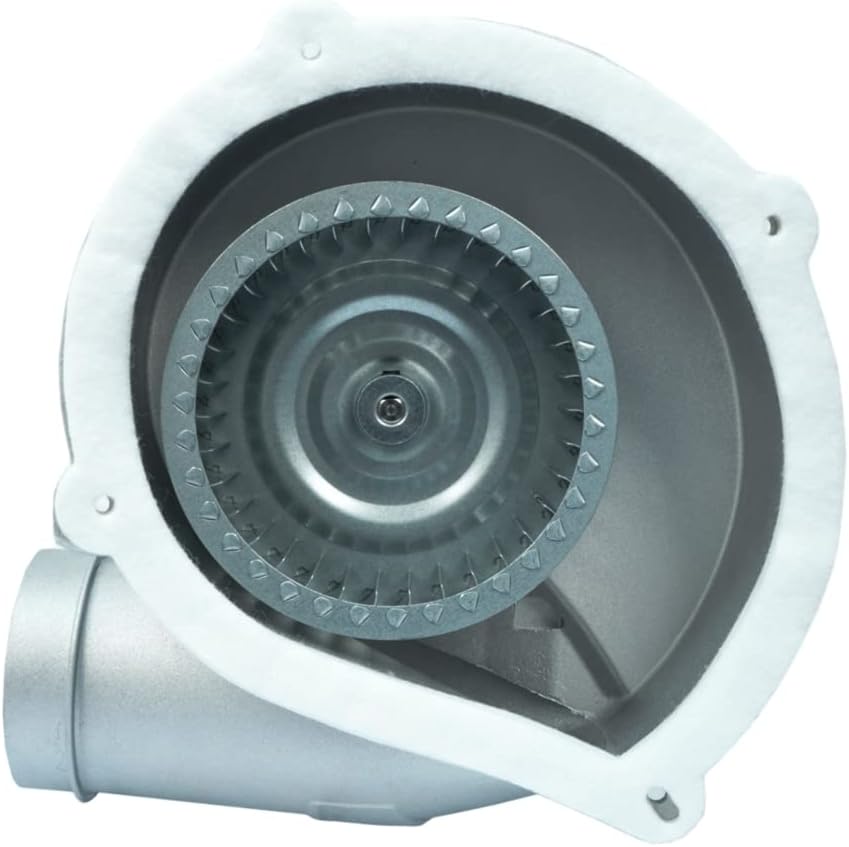

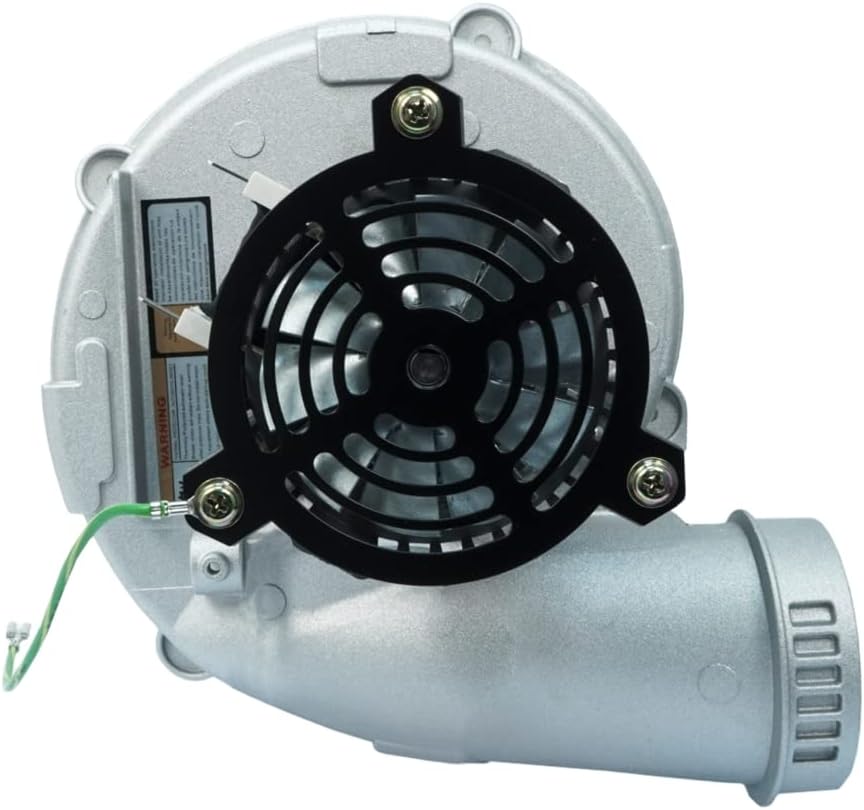

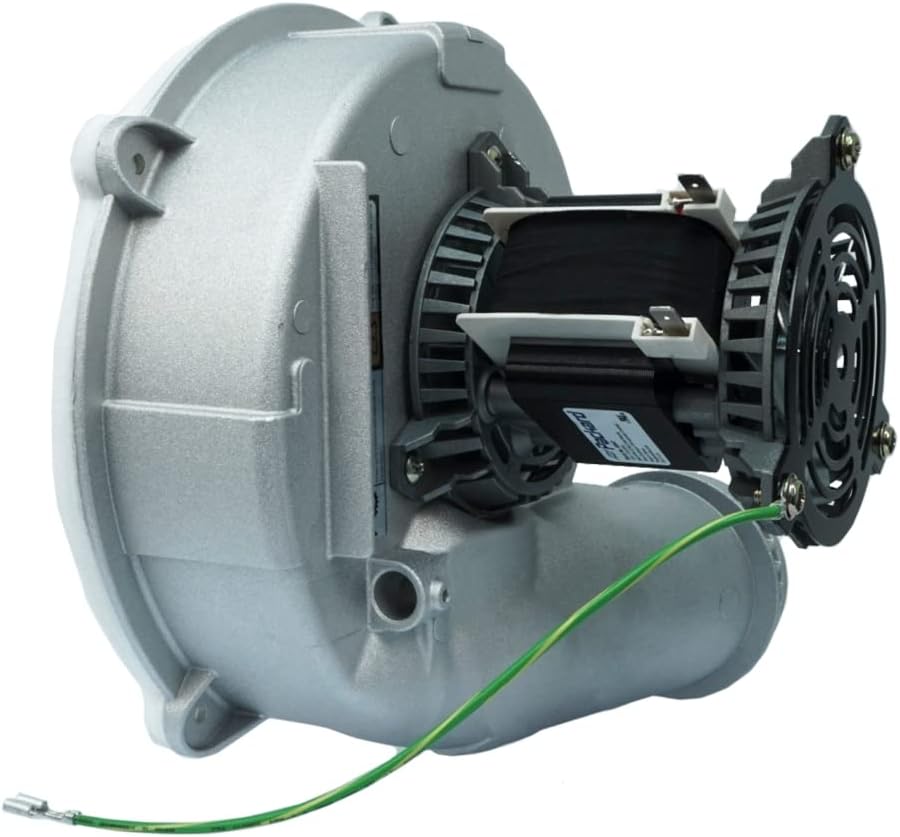

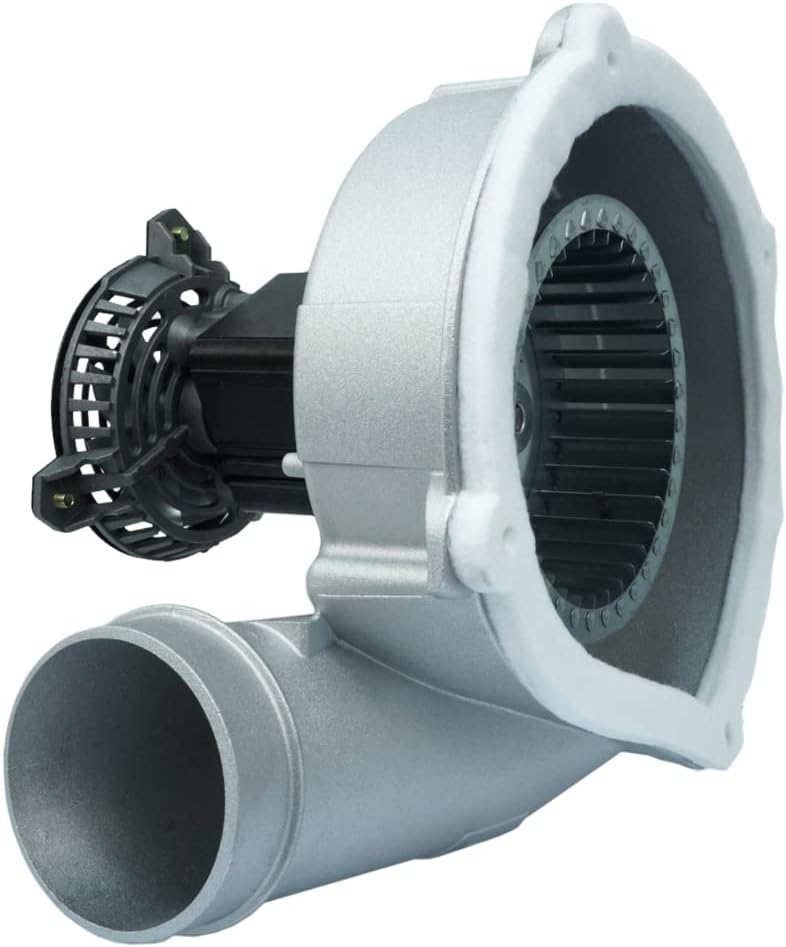

Packard 66847 Draft Inducer Blower Motor 1/30 HP 120V 3000 RPM

The Packard 66847 is a direct replacement draft inducer blower motor designed for residential furnaces and boilers. This shaded pole motor provides reliable combustion air circulation and pre-purge ventilation for gas-fired heating systems.

Electrical Specifications:

• Power: 1/30 horsepower (28 watts)
• Voltage: 120 VAC, single phase, 60 Hz
• Amperage: 1.71 amps
• Speed: 3000 RPM, single speed
• Airflow: 105 CFM

Construction Features:

• C-frame mounting configuration
• Ball bearing design for extended service life and quiet operation
• Open motor enclosure for airflow cooling
• Counter-clockwise rotation (viewed from lead end)
• Automatic thermal overload protection
• 3.3-inch motor diameter
• 1.5-inch stack length
• Class B insulation

OEM Cross-Reference Compatibility:

• Rheem/Ruud: 70-22162-81, 70-22838-02, 70-22838-82, 70-24149-01, 70-24157-03, 70-24175-81, FB-RFB142, 117104-01, 117104-08, 117847-07
• Fasco: A066, A066B, 7062-4534, 7062-4702, 7062-2615
• ICP: 1690042
• Ametek: 117104-01, 117104-08, 117847-07
• Nidec/US Motors: N066

This replacement motor includes a mounting gasket for proper installation and sealing. The shaded pole design eliminates the need for an external capacitor, simplifying installation. Ideal for restoring proper draft and combustion air circulation in compatible furnace and boiler inducer assemblies.
