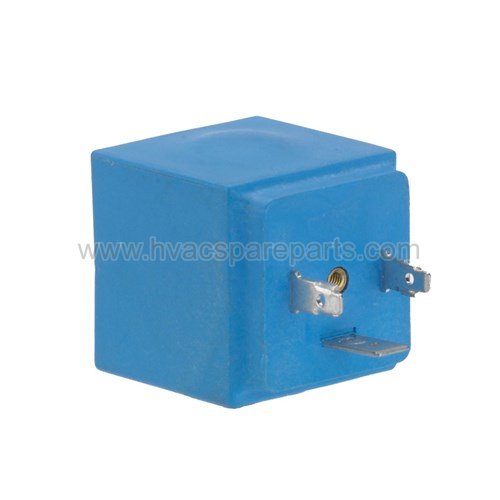

Danfoss 042N7601 AS230CS Solenoid Valve Coil 230VAC 6W DIN Spade

The Danfoss 042N7601 is a compact AS230CS series solenoid coil designed for use with Danfoss EV220T and EV220W solenoid valves in HVAC, refrigeration, and industrial fluid control applications. This replacement coil features a snap-on design that allows for quick installation and service without draining the system.

Key Specifications:

• Supply voltage: 230V AC (208-240V range ±6%)
• Power consumption: 6W holding, 26VA inrush
• Frequency: 50/60 Hz
• Actuator size: 9mm
• Electrical connection: DIN Spade (6.3mm x 0.8mm per EN175301-803)
• Enclosure rating: IP00
• Operating temperature range: -40°F to 122°F (-40°C to 50°C)
• Insulation class: H

Features and Benefits:

• Tool-free installation with clip-on mounting design
• Compatible with EV220T and EV220W valve series
• DIN spade terminal connection for reliable electrical contact
• Wide ambient temperature range for demanding applications
• Low power consumption for energy efficiency
• Can be replaced without stopping or draining the system

This coil is ideal for controlling fluid flow in refrigeration systems, HVAC equipment, and general industrial applications requiring precise solenoid valve operation. Multi-pack configuration available for maintenance and OEM applications.
