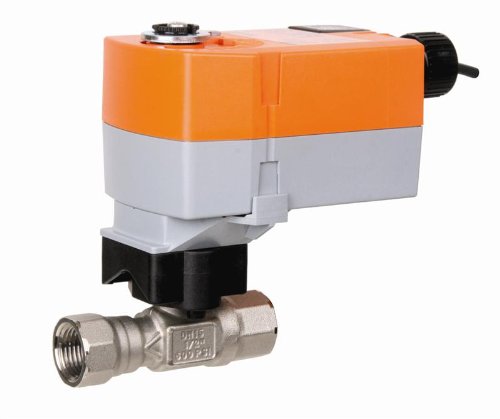

Belimo B215HT073+TFRB24SR HTCCV 2-Way High Temperature Characterized Control Valve with Spring Return Modulating Actuator 0.5in 0.73 Cv 24V 2-10V

Manufacturer

Part Number

B215HT073+TFRB24SR
Sale Price

$442.27

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Belimo B215HT073+TFRB24SR is a factory-assembled combination of a 1/2-inch, 2-way High Temperature Characterized Control Valve (HTCCV) paired with the TFRB24-SR spring return modulating actuator. This valve and actuator assembly is engineered for precise proportional control in demanding HVAC hydronic systems, including high-temperature hot water, chilled water, and low-pressure steam applications.

The B215HT073 valve features a flow coefficient (Cv) of 0.73 and delivers a true equal percentage flow characteristic, providing accurate and stable modulating control across the full stroke. The valve is direct-coupled to the TFRB24-SR actuator — no couplings or linkages required — for a compact, reliable installation.

The TFRB24-SR actuator operates on AC/DC 24V power and accepts a 2–10V (or 4–20mA with optional resistor) proportional control signal. Spring return functionality ensures the valve returns to its fail-safe position upon loss of power, making it well-suited for life safety and energy management applications. The actuator is maintenance-free and carries a 5-year warranty.

Key Features:

  • Valve Size: 1/2 inch (0.5")
  • Configuration: 2-way (normally closed)
  • Flow Coefficient: Cv = 0.73 (1.46 GPM @ Δ4 psi)
  • Flow Characteristic: True equal percentage
  • Application: High-temperature hot water, chilled water, and low-pressure steam
  • Actuator: TFRB24-SR — Spring return, modulating
  • Power Supply: AC/DC 24V
  • Control Signal: 2–10V modulating (4–20mA compatible with ZG-R01 resistor)
  • Fail-Safe: Spring return to closed position on power loss
  • Run Time: 75 seconds (open); 75 seconds spring return
  • Torque: 18 in-lb
  • Actuator Weight: 1.5 lb
  • Housing Material: UL94-5VA (flame retardant)
  • Certifications: cULus listed; meets requirements without electrical ground connection
  • Servicing: Maintenance-free
  • Storage Temperature: -40°F to 176°F (-40°C to 80°C)

This pre-assembled HTCCV valve and actuator combination from Belimo simplifies installation and ensures optimized system performance in commercial HVAC heating and cooling coil applications. The direct-coupled design eliminates mechanical slop and provides repeatable, accurate valve positioning throughout its service life.
