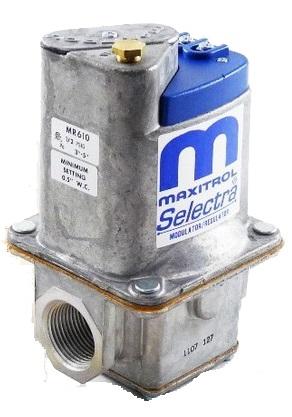

Maxitrol MR610-1 1" Gas Modulator Regulator Valve

The Maxitrol MR610-1 is a 1-inch modulator regulator valve designed for problem-free stabilized area heating, elevated heating, consistent higher baking/drying temperatures, and other process applications requiring precise temperature control. As the heart of the Selectra Electronic Gas Flame Modulating System, this valve provides precise, non-fluctuating, instantaneous temperature control without requiring any motor or mechanically driven butterfly valve.

Key Features:

• Performs dual functions of modulation and pressure regulation
• Provides infinite, continuous flame adjustment
• Absolutely no external mechanical activation required
• With zero voltage applied, the valve sets a regulated high fire condition; a separate pressure regulator is not required
• As voltage is applied, the plunger pulls up until all plunger weight and maximum spring force is removed, providing regulated low fire condition
• Capacities to 30,000 CFH
• May be factory installed or added in the field

Specifications:

• Connection Size: 1 inch NPT
• Factory settings: 0.5" w.c. minimum and 3.5" w.c. maximum outlet pressure
• Suitable for natural, manufactured, mixed, liquefied petroleum, and liquefied petroleum gas-air mixtures
• Must be mounted in upright position in horizontal pipe run, downstream of all other controls
• Operating temperature range: -40°F to 125°F (-40°C to 50°C)

This product should be installed by a licensed gas fitter. The MR610-1 is designed for use with Maxitrol Selectra series modulation systems and provides reliable, precise gas flow control for demanding commercial and industrial heating applications.
