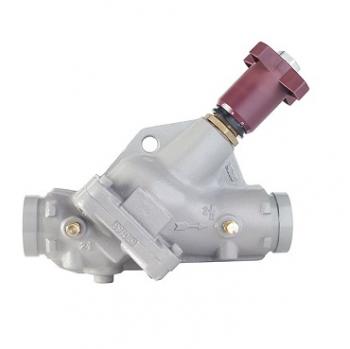

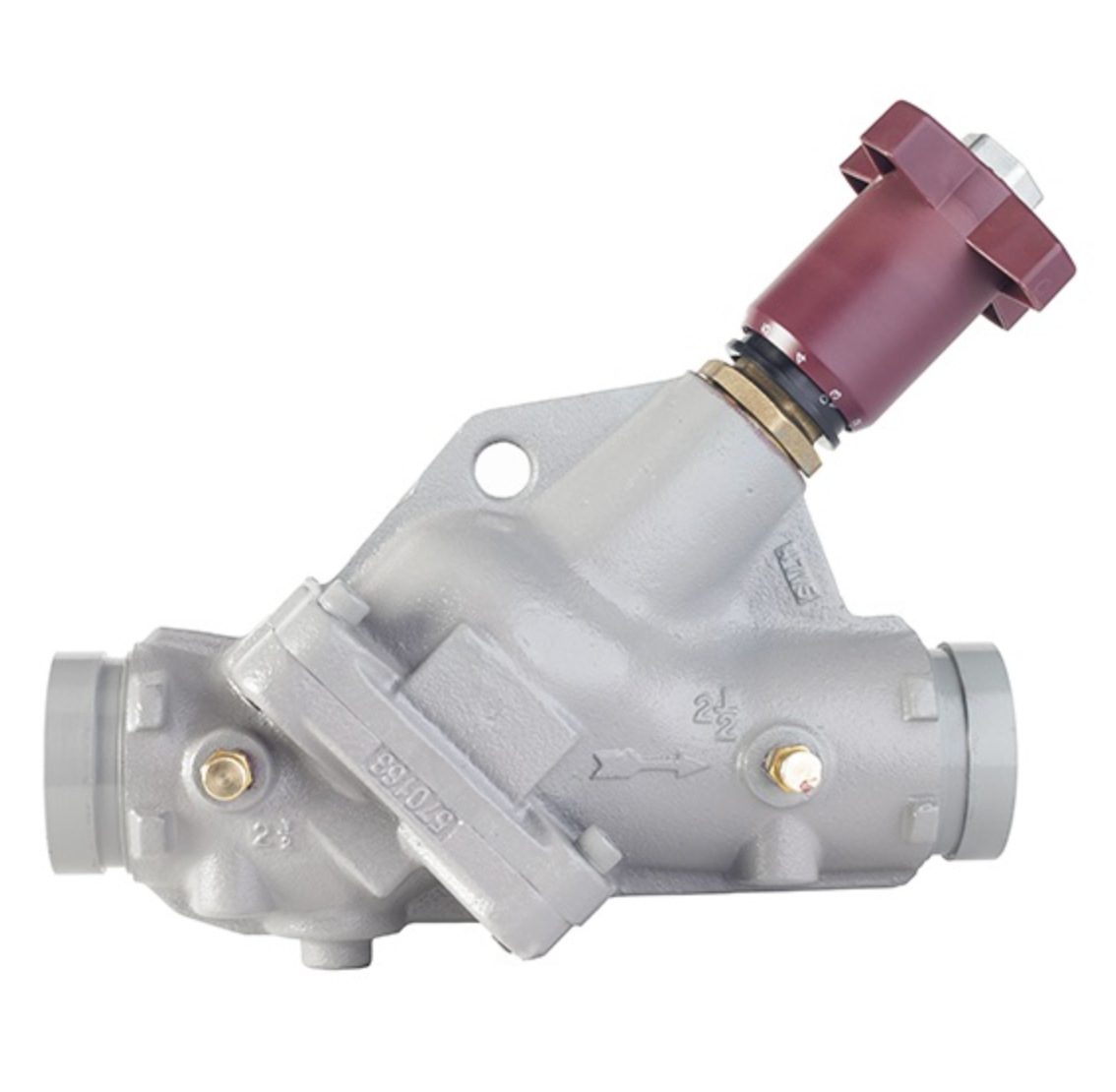

Armstrong 570109-387 CBV-3GS 3 Inch Grooved Straight Circuit Balancing Valve

Manufacturer

Part Number

570109-387
Sale Price

$1,177.48

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Armstrong 570109-387 is a 3-inch grooved circuit balancing valve designed for precise flow control in HVAC hydronic heating and chilled water systems. This CBV-3GS model features a straight configuration with grooved end connections for easy installation in commercial and industrial applications.

Key Features:

  • 3-inch nominal size with grooved end connections for quick, reliable installation
  • Wye pattern, globe-style valve design minimizes turbulence and ensures stable pressure readings
  • Five full 360-degree turns (1800 degrees total) from open to closed position for exceptional flow control precision
  • Micrometer-style handle with indicator for precise flow rate adjustment
  • Integral fixed Kv primary measuring element provides superior differential pressure signal stability
  • Flow measurement accuracy of ±5% across 95% or more of the operating range
  • Two pressure/temperature metering ports for accurate flow measurement and system diagnostics
  • Hidden memory stops allow return to calibrated balance point after using valve for shutoff
  • Maximum working pressure of 250 PSI
  • Maximum working temperature of 230°F
  • Flow rate range: 3.8 to 8.8 GPM optimized performance

Armstrong Circuit Balancing Valves provide three critical functions in hydronic systems: precision flow measurement, pump throttling capability, and temperature measurement. The fixed orifice design ensures faster setting times and superior accuracy compared to traditional throttling valves, making it easier for contractors to balance systems and achieve optimal occupant comfort while reducing energy consumption.
