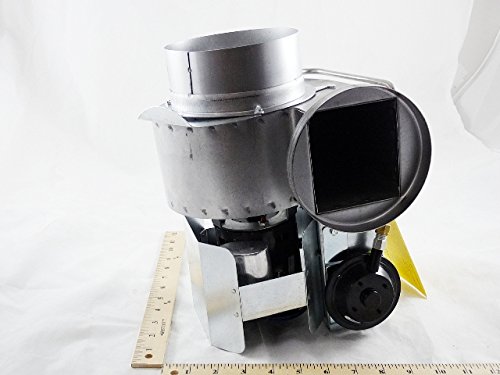

Field Controls 46245703 PVG-600 115V 5" Gas Power Venter

The Field Controls PVG-600 is a professional-grade indoor power venter designed for sidewall venting of gas-fired heating appliances. This 115V unit features a 5-inch inlet/outlet diameter and is engineered to safely and efficiently vent combustion gases from furnaces, boilers, and water heaters burning natural gas or LP.

Key Features:

• 5-inch inlet and outlet diameter for 610,000 BTU/hr maximum input capacity
• 115V AC operation with thermally protected motor
• Integrated 24 VAC relay/timer and pressure switch included
• Post-purge control clears venting system of combustion gases after burner shutdown
• Galvanized steel construction with 8.75-inch height profile
• ETL Listed for safety and performance
• Compatible with Tjernlund HS1, HST-1, and HSUL-1 replacement applications

The PVG-600 works by activating when the thermostat or aquastat calls for heat, drawing combustion air through the system and forcing exhaust gases outside through an external vent hood (sold separately). The built-in pressure switch ensures sufficient airflow before allowing burners to start, while the post-purge feature clears residual gases after the heating cycle completes. This unit can be used to vent a single 24 VAC controlled gas appliance or a combination of a 24 VAC furnace/boiler with a 30 millivolt water heater.

Note: Annual maintenance required - motor should be lubricated with six drops of SWG Superlube (Part #46226200) yearly to ensure optimal performance and longevity.
