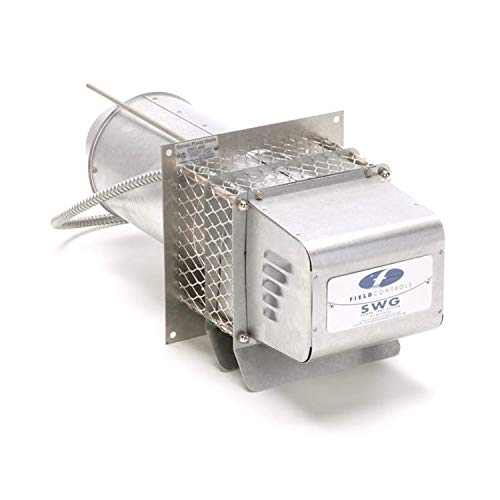

Field Controls 46159201 SWG-8 8" Inlet Power Venter for Gas/Oil Appliances

The Field Controls 46159201 (model SWG-8) is an 8" inlet power venter (also called a power vent or draft inducer) for gas and oil heating appliances such as furnaces, boilers and water heaters. It combines the motor, blower and vent hood in one complete unit that is easy to install.

Key Features:

• Mounts on the outside of the building and pulls combustion gases from the appliance through the outside wall using 100 percent negative pressure.
• Rated 115V, 60Hz, 4.37A, with a 3100 RPM motor and thermal protection.
• Keeps the vent pipe under negative pressure, and standard galvanized pipe can be used instead of stainless steel.
• Vent pipe joints don't need sealing, and vent runs can be much longer than with positive-pressure direct vent systems.
• 8" inlet, with a 740,000 BTU input rating.
• Dimensions: 11-7/8" long (front to back) x 13" wide x 14-1/4" high.

The venter must be sized to match the input firing rate of the appliance or appliances. It must be installed with a CK Control Kit to ensure proper listing and safe, efficient venting.
