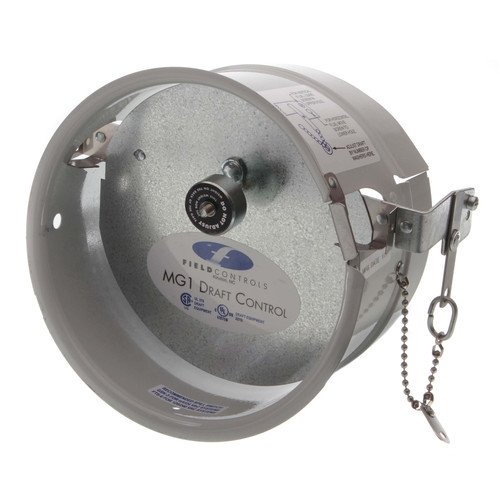

Field Controls 02724001 MG1 6 Inch Double Acting Barometric Draft Control

The Field Controls 02724001 MG1 is a 6-inch double-acting barometric draft control designed for gas-fired furnaces and boilers. This professional-grade draft regulator automatically modulates draft pressure to ensure optimal combustion efficiency and appliance safety.

Key Features:

• Double-acting design opens to relieve positive vent system pressures as low as 0.01 inches
• Precise draft adjustment range from 0.01 to 0.1 inches using included weights
• 6-5/8 inch outer diameter with 28.3 square inch nominal capacity
• Fits pipe circumferences from 15-3/4 to 19 inches
• Durable construction with 24-gauge ring and gate, 26-gauge collar
• Controls drafts at levels higher than standard draft diverters

Applications:

• Conversion burner installations
• Gas draft-induced appliances with mechanical draft inducers or sidewall power venters
• Gas atmospheric appliances where draft hoods cannot be installed
• Improving combustion stability on installations with venting problems
• Dual fuel appliance installations

This draft control provides superior performance over standard draft diverters, making it ideal for applications requiring precise draft management. The double-acting mechanism automatically relieves both negative and positive pressure conditions to maintain stable, efficient combustion.
