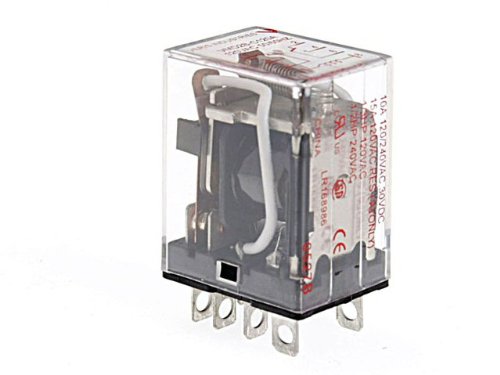

Veris VMD2B-C24A DPDT Mini Relay 24VAC Blade-Style Socket/DIN Mount

Manufacturer

Part Number

VMD2B-C24A
Sale Price

$7.44

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Veris VMD2B-C24A is a compact Double Pole Double Throw (DPDT) blade-style relay designed for socket and DIN rail mounting applications. With a 24 VAC coil voltage and a 15-amp contact rating, this mini relay delivers reliable switching performance for building automation, HVAC controls, industrial machine control, and energy management systems.

Key Features:

  • DPDT Configuration: Double pole double throw contacts for versatile switching circuit configurations
  • 24 VAC Coil: Standard low-voltage coil compatible with typical building automation and HVAC control panels
  • 15A Contact Rating: Handles up to 15 amps at the relay level for robust load switching
  • Dual Mounting Options: Side-mount or 35 mm DIN rail mounting — retrofits existing panel mounting hardware
  • 8-Pin Blade-Style Terminals: Industry-standard blade configuration for use with compatible VBD2B-C sockets
  • Wide Operating Temperature: Rated from -40°C to 55°C (-40°F to 131°F) for demanding environments
  • Coil Operating Range: Functions from 85% to 110% of rated voltage with a 15% drop-out voltage threshold
  • Long Service Life: Rated for 100,000 electrical cycles at rated current and 10,000,000 mechanical cycles unpowered
  • Fast Operate Time: Typical operating time of 20 ms for responsive control
  • Dielectric Strength: 1,500 VAC (RMS) for safe isolation between coil and contacts
  • Safety Certifications: UL and CE listed, meeting industry standards for safety and performance
  • 50/60 Hz Compatible: Suitable for both North American and international power systems

The VMD2B-C24A is the standard (plain) model in the Veris VMD2B-C series. It pairs with the VBD2B-C socket (sold separately) or is available as the CKIT-VMD2B-C24A combo kit that includes the matching socket. Alternate part number: VMD2BC24A. Ideal for control panel builders and building automation integrators needing a compact, dependable general-purpose relay.
