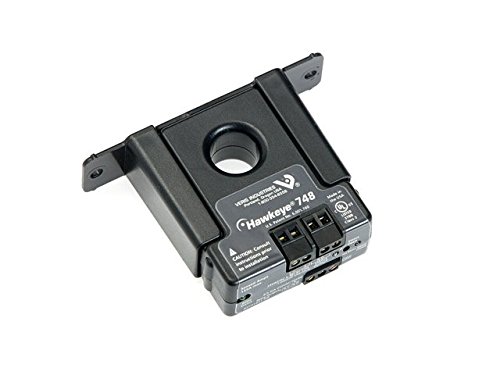

Veris H-748 Current Switch with SPDT Relay 1-135A Adjustable Solid Core

Manufacturer

Part Number

H-748
Sale Price

$111.48

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Veris H-748 Hawkeye is a combination current switch and relay unit designed for building automation and industrial control applications. This space-saving device combines a current switch and SPDT (Single Pole Double Throw) relay into a single package, eliminating the need for separate components when controlling fans, pumps, and other motorized equipment.

Key Features:

  • Adjustable trip point from 1 to 135 amps AC current measurement range
  • Solid core construction for permanent installation applications
  • SPDT mechanical relay with 24 VAC/DC coil voltage
  • Normally open (N.O.) contact configuration with 1A output
  • Independent operation of current switch and relay functions
  • Polarity insensitive for fast, error-free installation
  • Detects belt loss and motor failure for equipment monitoring
  • Foot mount design with terminal block connections

Relay Contact Ratings:

  • Resistive: 8A @ 250 VAC or 8A @ 30 VDC
  • Inductive: 3.5A @ 250 VAC or 3.5A @ 30 VDC

The H-748 allows both start/stop control and status monitoring with a single device instead of two separate units, reducing installation time, wiring complexity, and panel space requirements. Ideal for HVAC systems, pump stations, and industrial automation applications where equipment monitoring and control are critical.

Specifications: 600 VAC RMS insulation class, 50/60 Hz frequency range, operating temperature -15° to 60°C (5° to 140°F), 10-90% RH non-condensing humidity range, 10% typical hysteresis, 14 AWG maximum wire size, UL listed.
