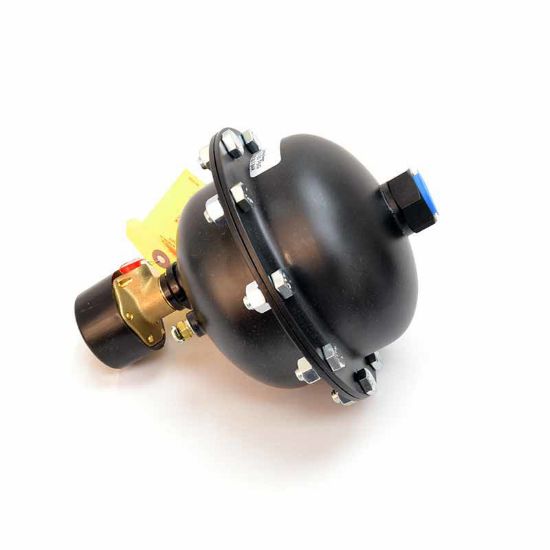

SpxFlow 505BC Trip-L-Trap Mechanical Condensate Drain Valve

The SpxFlow 505BC Trip-L-Trap is an automatic mechanical condensate drain designed to efficiently remove water, oil, and oil/water emulsions from compressed air systems. This float-activated drain valve provides zero-loss operation, ensuring no compressed air is wasted during the discharge process.

Key Features:

• Automatic float-activated pilot valve operates on demand
• Air-powered piston opens large discharge port for reliable condensate removal
• Zero-loss design prevents compressed air waste and maximizes energy efficiency
• Heavy-duty carbon steel construction for durability in demanding industrial environments
• Designed for applications with heavily contaminated condensate output
• Rated for one discharge per minute continuous operation for one year before rebuild required
• 0.4 pint (190 cc) discharge volume per operation

Specifications:

• Connection: 3/4" NPT
• Design Pressure: 300 PSIG
• Maximum Temperature: 150°F
• Material: Carbon Steel
• Dimensions: 8.5" H x 7" W x 7" D
• Weight: 8 lbs

The Trip-L-Trap Series is engineered for versatile installation and economical operation, protecting your compressed air system by preventing receiver tanks from filling with condensate and eliminating compressor short cycling issues.
