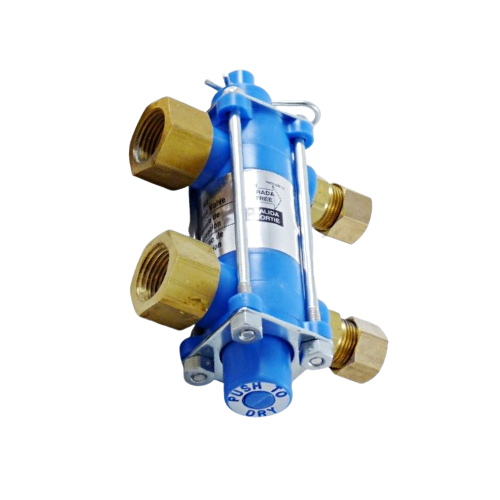

SpxFlow 1701-3 Air/Liquid Bypass Valve, Bleed Type Dryer Bypass

The SpxFlow 1701-3 is a bleed type air/liquid bypass valve for dryers. It lets you service a system component and keep the system running. It takes the place of a conventional three-valve bypass setup, so it saves installation cost and space.

Key Features:

• Bleed type: in bypass mode, the bypassed component depressurizes automatically through a bleed hole in the valve
• All parts are enclosed in one integral unit, with no separate valves or brazed fittings to sequence
• Compression fittings use a reusable rubber ferrule
• Metal-to-plastic design keeps the fittings fully rotatable and prevents leakage
• Compact design makes installation easier
• Works with gases and liquids that are compatible with nylon, Buna N and brass

This bypass valve suits compressed air dryer service, where a component needs to be isolated for maintenance without shutting down the whole system.
