Functional Devices RIBXLSRA Current Sensor and Relay Combination with Adjustable Solid-Core AC Sensor

The Functional Devices RIBXLSRA is a current sensor and relay combination unit designed for commercial and industrial energy management and building automation applications. This all-in-one solution combines a control relay and current-sensing status switch in a single junction box with high-voltage and low-voltage separation, eliminating the need to purchase and assemble separate components.

Key Features:

• 10 amp SPST relay with 10-30 Vac/dc coil voltage
• Adjustable current sensing range from 1.25 to 150 amps with external solid-core sensor
• SPST relay output selectable between normally open and normally closed, with built-in override switch
• 10 amp resistive contact rating, 480 VA inductive load capacity
• Externally visible LEDs indicate relay coil and current sensor trigger status

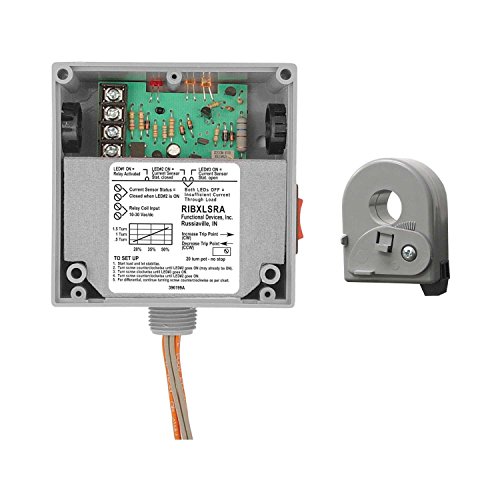

• Housed in a 4" x 4" plastic NEMA 1 enclosure with included solid-core remote current sensor
• Three-position override switch (closed, open, or automatic) allows manual control

The RIBXLSRA is pre-packaged to save installation time and expense by combining all necessary components including the current sensor, relay, LED indicator, socket, mounting rail, and housing in one ready-to-install unit. Ideal for motor control, HVAC systems, and load monitoring applications where both control and status sensing are required.
