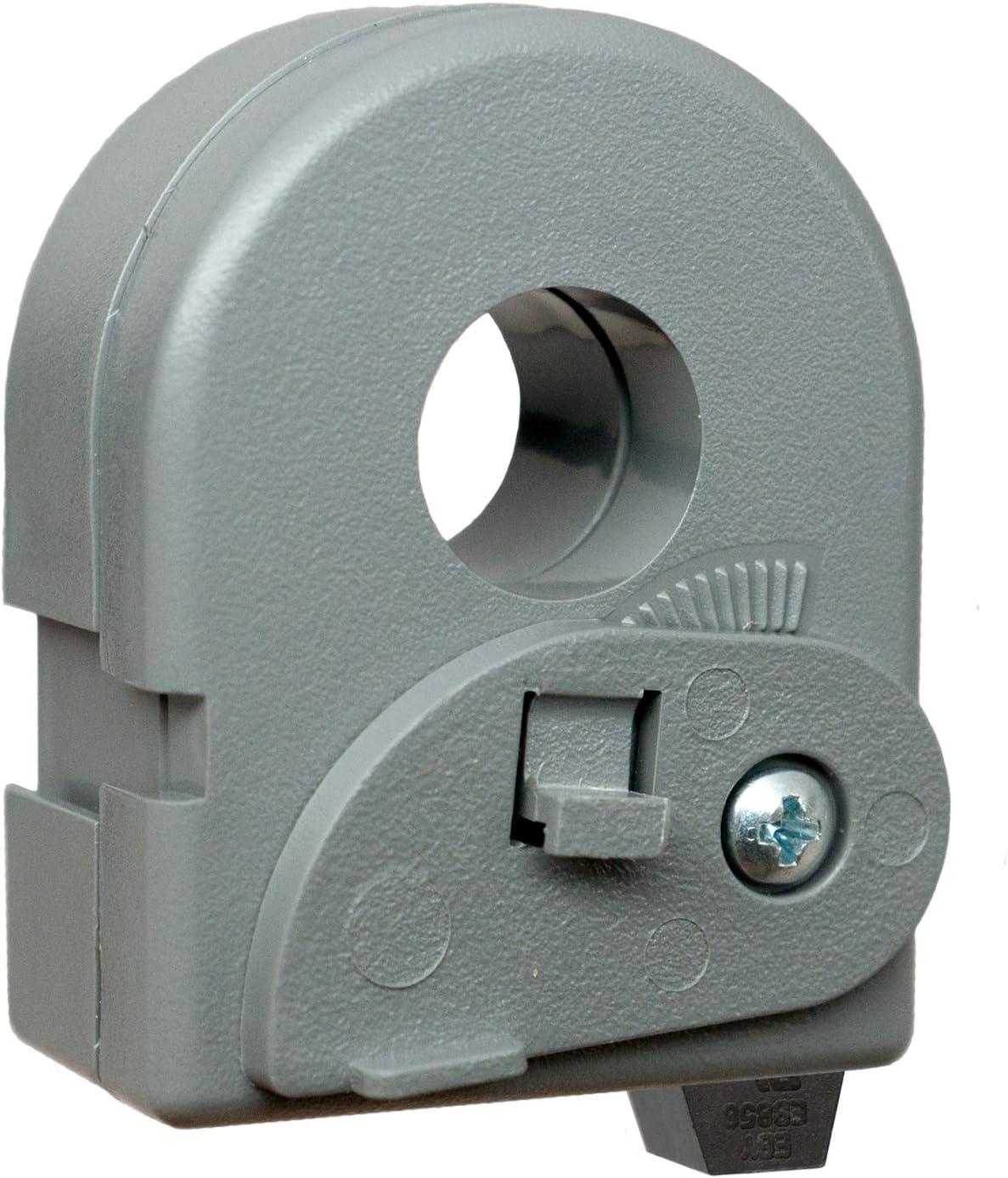

Functional Devices RIBXKTV5-10 Solid Core Current Transducer 0-10 Amp 0-5 VDC Output

The Functional Devices RIBXKTV5-10 is an enclosed solid-core analog current transducer designed for building automation and HVAC control applications. This device monitors AC current flow from 0 to 10 amps and converts it to a proportional 0-5 VDC analog output signal for interfacing with controllers, data acquisition systems, and energy management platforms.

Key Features:

• Solid-core design with 0.5-inch window size for secure wire mounting
• 0-10 amp current sensing range with 0-5 VDC analog output
• Terminal strip connections accept #14-22 AWG wire
• UL Listed, C-UL, CE, RoHS compliant, meets UL916 standards
• Wide operating temperature range: -30°F to 140°F
• Humidity tolerance: 5% to 95% non-condensing
• Maximum sense voltage: 600 VAC
• Grey enclosure with removable mounting tab
• Made in the USA with US and non-US components

The solid-core construction features a wire clamp that locks against the monitored conductor, securing the transducer in place during installation. The compact enclosed design protects internal electronics while providing easy access to terminal connections for quick wiring. Ideal for current monitoring applications in commercial HVAC systems, industrial controls, and energy management installations.
