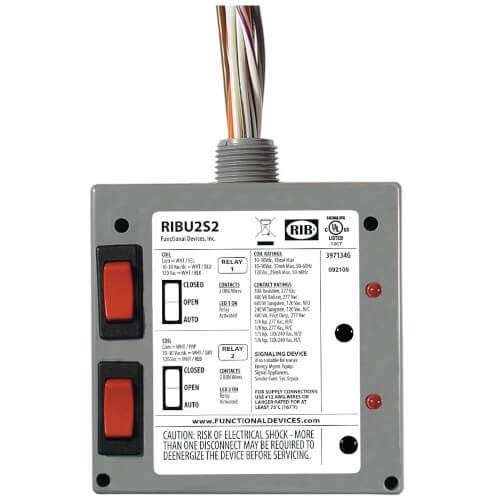

Functional Devices RIBU2S2 Enclosed Pilot Relay 10 Amp 2 SPST-N/O with Override Switch

The Functional Devices RIBU2S2 is a pre-wired enclosed pilot relay designed for Building Automation Systems (BAS), HVAC control, low-horsepower motor applications, and lighting control. This relay-in-a-box solution eliminates the need to purchase and assemble separate relay components, saving installation time and reducing labor costs.

Key Features:

• Dual 10 Amp SPST normally-open relay contacts for controlling light electrical loads or driving power relays and contactors
• Two manual override switches (Closed-Open-Auto) located on the load side for independent control of each relay output
• Dual coil voltage options: 10-30 Vac/dc or 120 Vac for flexible installation requirements
• NEMA 1 rated enclosure with 3/4-inch NPT nipple for easy conduit mounting
• LED status indicator shows when relay coil is activated
• Expected relay life of 10 million cycles minimum mechanical operation
• Operating temperature range: -30°F to 140°F (-34°C to 60°C)
• 16-inch pre-wired leads rated for 600V applications
• UL Listed (UL916, UL864) and C-UL approved; California State Fire Marshal certified

The relay is factory-mounted in a durable housing and comes fully pre-wired for quick installation. Simply insert the wires and NPT nipple through a conduit knockout, tighten the locknut, and connect the wires. Contact ratings include 10 Amp resistive, 180 VA pilot duty, and 1/3 HP at 120-240 Vac for normally-open contacts. Made in USA.
