Functional Devices RIBU1CW Enclosed Pilot Relay 15 Amp SPDT 10-30 Vac/dc/120 Vac Coil

The Functional Devices RIBU1CW is an enclosed pilot relay designed for Building Automation Systems (BAS), HVAC controls, low-horsepower motor applications, and lighting control. This relay-in-a-box design features a 15 amp SPDT contact configuration with a universal coil that accepts 10-30 Vac/dc or 120 Vac input, making it highly versatile for various control applications.

Key Features:

• 15 Amp SPDT continuous duty relay contacts for controlling electrical loads
• Universal coil voltage: 10-30 Vac/dc or 120 Vac for flexible installation
• Hi/Lo vertical separation terminal configuration for organized wiring
• LED status indicator - illuminates when relay is activated
• Pre-wired with 16-inch leads rated for 600V
• 10 million cycle minimum mechanical life rating for long-term reliability
• 20 millisecond operate time for fast switching response
• NEMA 1 rated plenum housing for commercial installations
• 1/2-inch NPT conduit hub for easy wire management

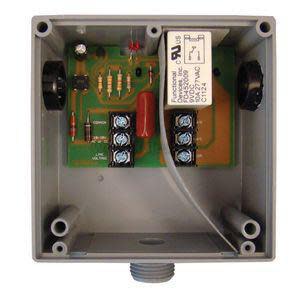

The RIBU1CW comes fully assembled with the relay mounted and pre-wired in a protective enclosure, eliminating the need to purchase separate components like relay sockets, mounting rails, and enclosures. Operating temperature range of -30°F to 140°F and humidity tolerance of 5-95% RH (non-condensing) make this relay suitable for demanding environments. UL Listed to UL916 Energy Management and UL864 Fire standards, cUL Listed, and CSFM approved for code compliance.
