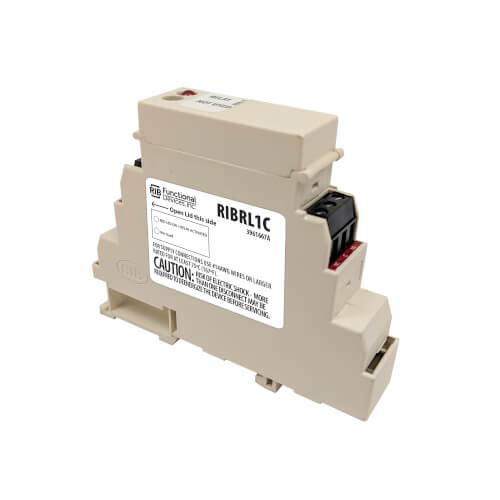

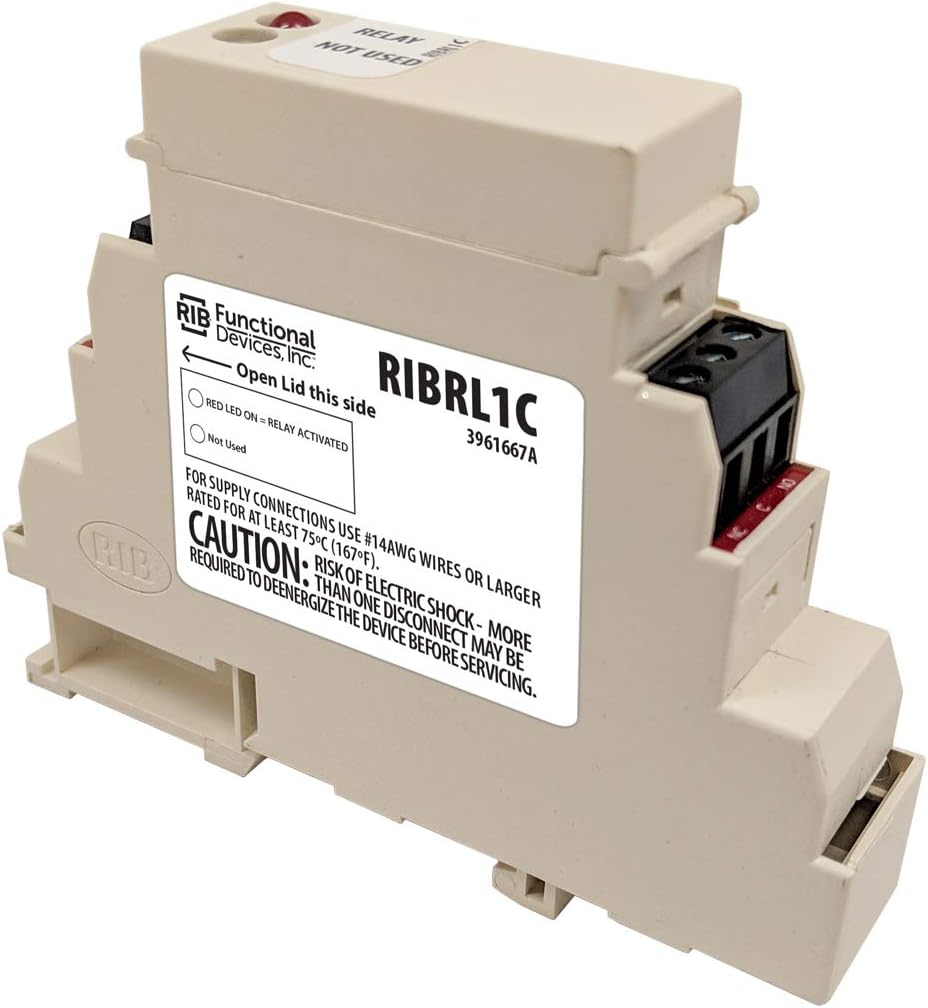

Functional Devices RIBRL1C DIN Rail Mount Relay 10 Amp SPDT 10-30 Vac/dc Coil

The Functional Devices RIBRL1C is a professional-grade DIN rail mount relay designed for building automation, HVAC controls, and industrial applications. This compact pilot relay features a removable socket design for easy maintenance and field replacement, making it ideal for control panels and equipment installations.

Key Features:

• 10 amp SPDT (Single Pole Double Throw) contact configuration for versatile switching applications
• Universal 10-30 Vac/dc coil voltage eliminates the need to stock multiple relay voltages
• LED status indicator shows when relay is activated for quick visual diagnostics
• Standard DIN rail mounting for quick installation in control panels
• Removable socket relay (ARL1C) allows replacement without rewiring
• Accepts 14-22 AWG wire for flexible connection options
• 10 million cycle minimum mechanical life expectancy for long-term reliability
• Gold flash contacts ensure reliable operation and extended service life

Specifications:

• Operating Temperature: -30°F to 140°F (-34°C to 60°C)
• Humidity Range: 5% to 95% non-condensing
• Operate Time: 18-20ms
• Dimensions: 3.88" H x 2.76" W x 0.78" D
• UL Listed to UL916 standard, C-UL, CE, and RoHS compliant

Made in the USA and backed by Functional Devices' quality guarantee, the RIBRL1C is compatible with ADIN35 and ADIN35ES mounting accessories for enhanced installation flexibility.
