Functional Devices RIBMN24C-4T Four Pilot Relays 15A SPDT 24V Track Mount Panel Relay

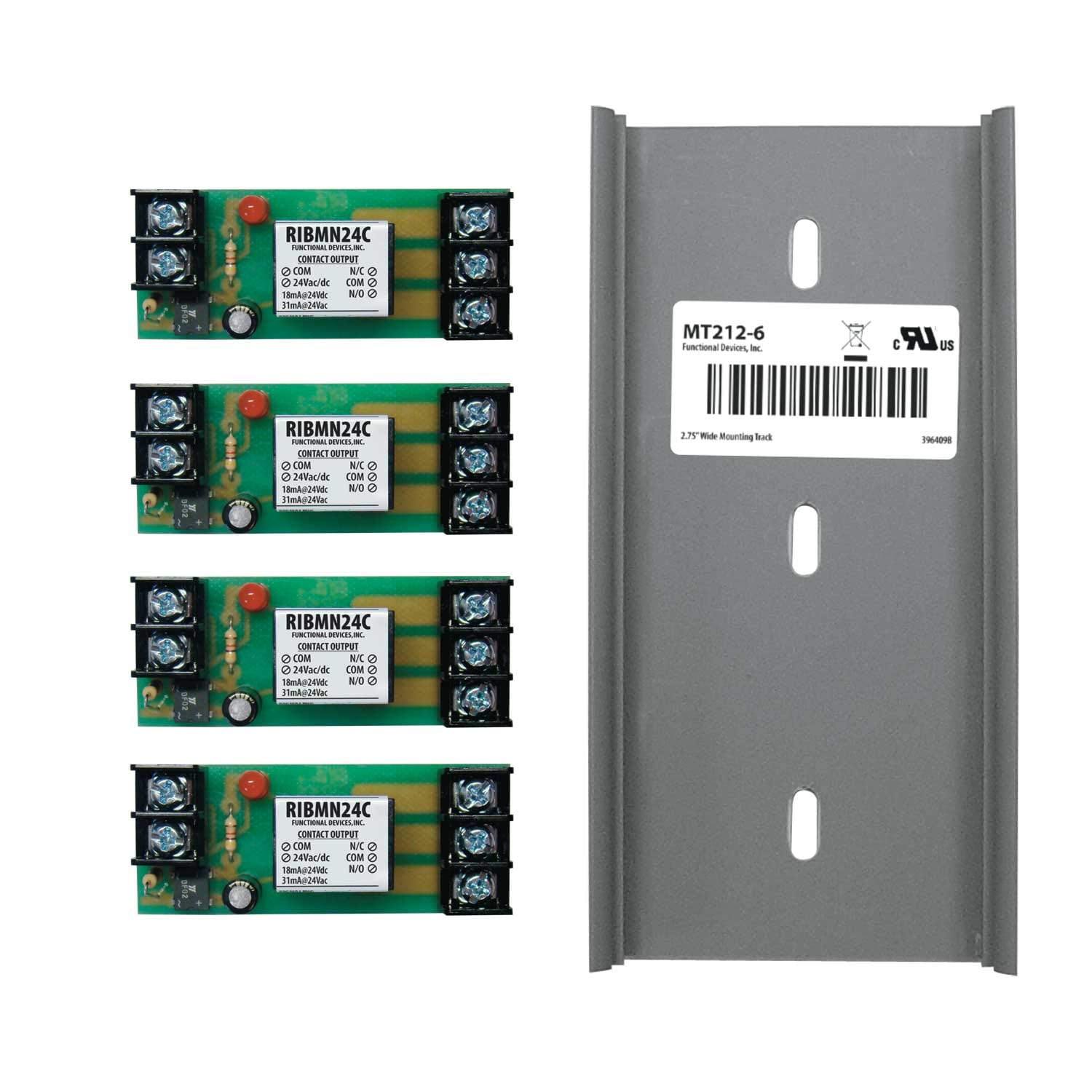

The Functional Devices RIBMN24C-4T is a four-relay track mount panel assembly featuring four individual RIBMN24C pilot relays pre-mounted on an included MT212-6 DIN-style mounting track. Designed for building automation and HVAC control applications, this unit delivers reliable 24 VAC/DC switching in a compact, ready-to-install package.

Each of the four relays provides a Single-Pole Double-Throw (SPDT) contact configuration rated at 15 amps, making them well-suited for pilot duty and general-purpose load control in commercial and light industrial control panels. The continuous-duty coil design ensures dependable long-term operation across a wide range of environments.

Key Features:

• Four (4) SPDT continuous-duty pilot relays on a single track
• 24 VAC/DC coil voltage for compatibility with standard BAS/HVAC control systems
• 15 Amp contact rating at 125 VAC general use; 10 Amp at 277 VAC
• Operates at 50/60 Hz frequency
• LED status indicator: LED on = relay activated
• Operate time: 6ms
• Mechanical life rating: 10 million cycles minimum
• Operating temperature range: -30°F to 140°F (-34°C to 60°C)
• Humidity range: 5% to 95% non-condensing
• Includes MT212-6 mounting track (2.75" x 6.00")
• Individual relay dimensions: 1.25"H x 2.75"W x 1.25"D1 / 1.75"D2
• Made of US and non-US parts

Certifications & Approvals:

• UL Listed, UL916
• C-UL (Canadian UL)
• CE and RoHS compliant
• UL864 listed
• California State Fire Marshal approved

Backed by Functional Devices' 10-year warranty, the RIBMN24C-4T is an efficient solution for panel builders and integrators who need multiple relay points in a single, organized track-mount assembly.
