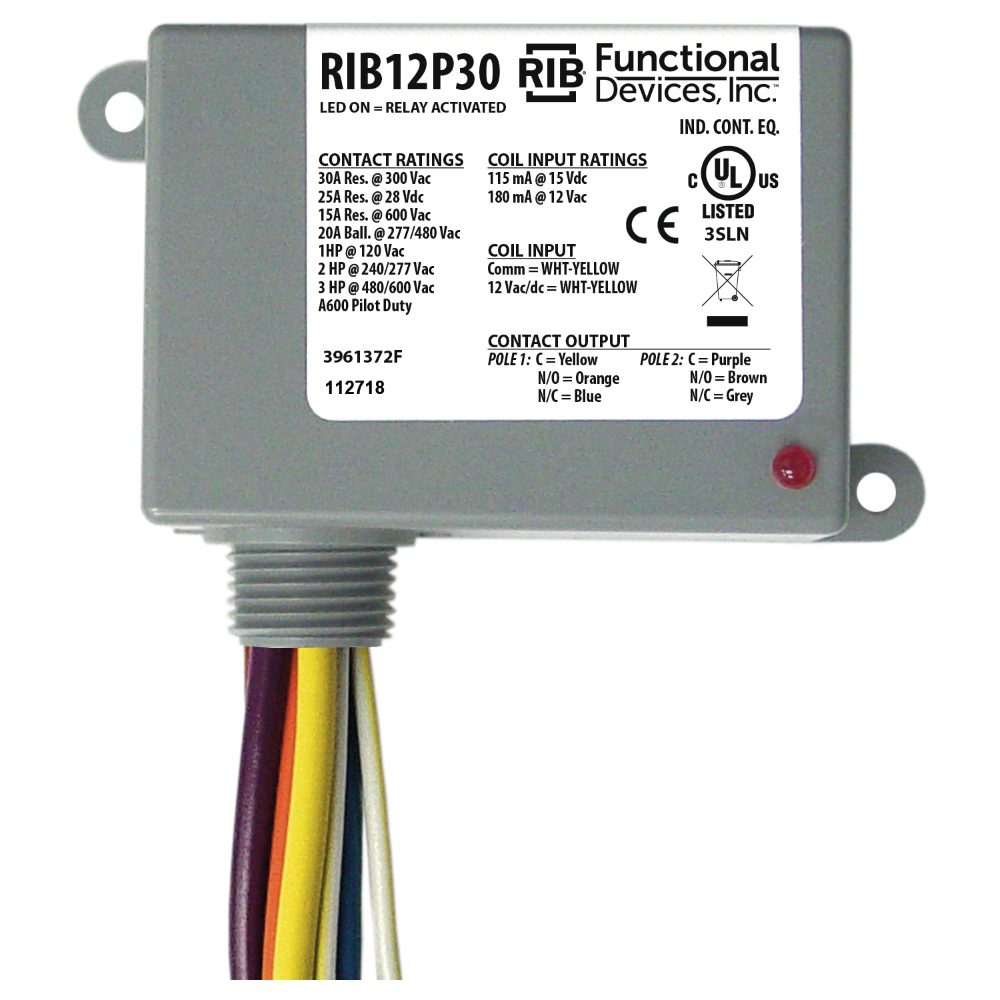

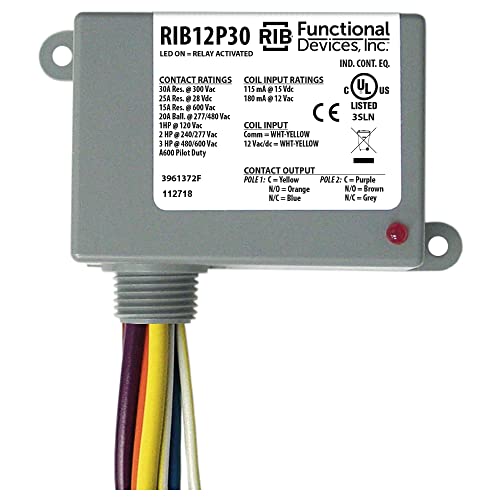

Functional Devices RIB12P30 Enclosed Power Relay 30 Amp DPDT 12Vac/dc NEMA 1

The Functional Devices RIB12P30 is a 30-amp DPDT (Double Pole Double Throw) power control relay enclosed in a NEMA 1 housing, designed to save installers time and expense by integrating multiple components into one pre-wired unit. This enclosed relay eliminates the need to purchase and install separate components such as relay, LED indicator, socket, mounting rail, transient protection, and housing.

Key Features:

• 30A @ 300VAC, 15A @ 600VAC, 25A @ 28VDC contact rating (resistive)
• 12 Vac/dc coil voltage with 50/60 Hz operation
• Silver alloy contacts with screw terminals for reliable connections
• Externally visible LED indicator shows relay coil status
• 18 millisecond response time for fast switching
• 1 HP @ 120V, 2 HP @ 240V motor rating
• 16-inch pre-wired leads with 3/4-inch NPT nipple for easy mounting
• UL Listed, CUL, CE certified
• Made in USA

Part of the Functional Devices RIB (Relay in a Box) Power Series, these relays are designed for higher amp commercial or industrial energy management applications and are solidly engineered for long-lasting durability and dependability. The relays are BACnet compatible relay devices, making them ideal for building automation and HVAC control systems.
