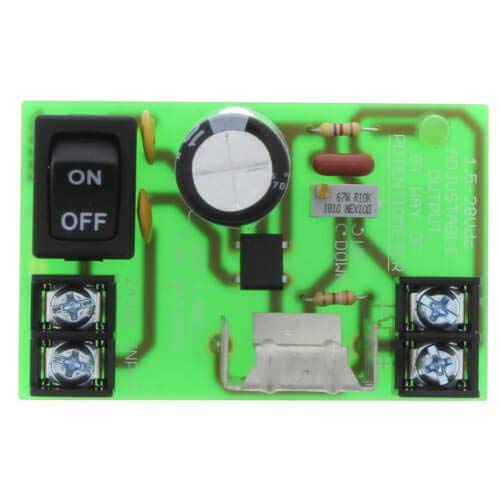

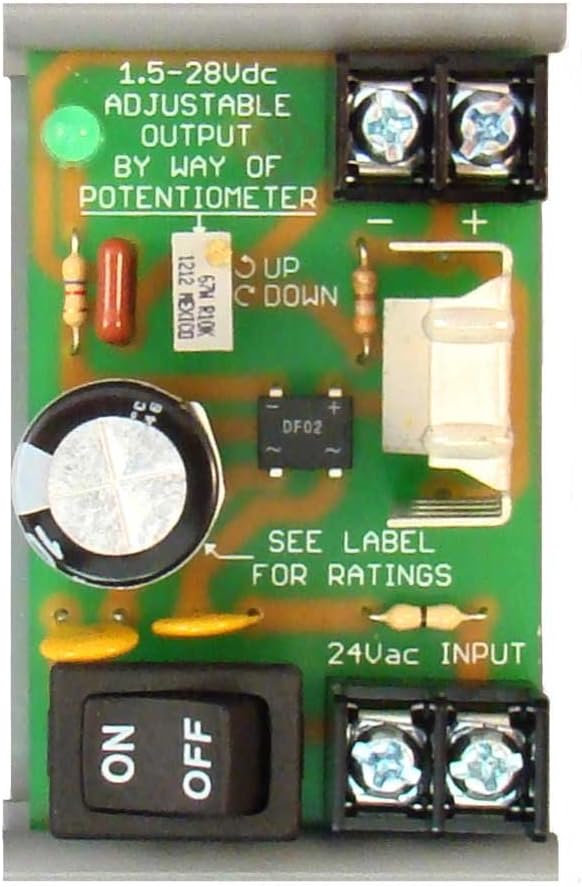

Functional Devices PSMN24DAS Non-Isolated Linear DC Power Supply 24VAC to 1.5-28VDC 300mA Track Mount

The Functional Devices PSMN24DAS is a non-isolated linear DC power supply designed for reliable performance in industrial and commercial control applications. This compact unit converts 24 VAC input to an adjustable 1.5-28 VDC output with a 300mA current capacity, providing flexible voltage control for various automation and building control systems.

Key Features:

• Adjustable output voltage from 1.5 to 28 VDC for customized power requirements
• 300mA output current capacity for powering sensors, controllers, and small devices
• Built-in ON/OFF 2-position switch for convenient power control
• LED power status indicator for quick visual confirmation
• 2.75-inch MT212-4 mounting track included for easy DIN rail or panel installation
• Electrical and thermal overload protection with automatic reset
• Wide operating temperature range from -30°F to 140°F
• Class 2 rated with UL5085-3, UL916, C-UL, CE, and RoHS approvals

This power supply operates on 50/60 Hz frequency and functions reliably in humidity conditions up to 95% non-condensing. The non-isolated linear design provides cost-effective power conversion for applications where isolation from the AC source is not required. Ideal for HVAC controls, security systems, access control panels, and other low-voltage DC applications.
