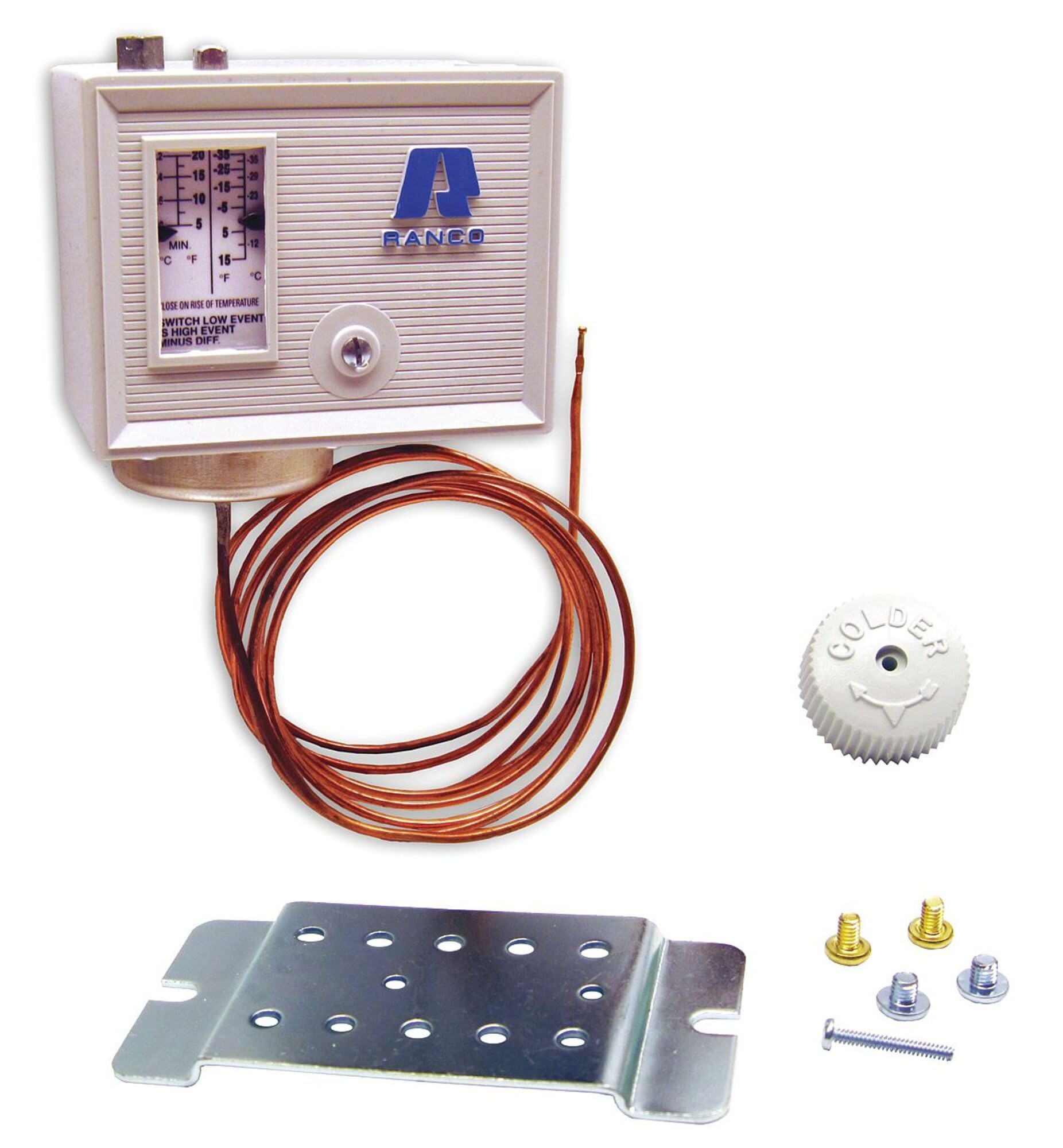

Ranco O10-1419 Extra Low Temperature Control -35°F to 15°F 72" Capillary

The Ranco O10-1419 is an extra low temperature control designed for commercial refrigeration and freezer applications requiring precise temperature management in extreme cold environments. This control features an extended temperature range of -35°F to 15°F, making it ideal for walk-in freezers, ultra-low temperature refrigeration units, and specialized cold storage applications.

Key Features:

• Temperature range: -35°F to 15°F for extra low temperature applications
• 72-inch capillary sensor with remote bulb for flexible installation
• SPST (Single Pole Single Throw) switch configuration with close-on-rise action
• Adjustable differential: 3°F to 20°F for precise temperature control
• Heavy-duty plated steel frame construction for durability
• Non-conductive cover with front-located captive cover screws
• Raised screw terminals for fully accessible wiring connections
• Large easy-to-read temperature scale
• 7-revolution range adjustment screws for maximum accuracy
• NEMA 1 enclosure with universal mounting design
• Rated for 120/240V operation

Part of the Ranco O Series wide range temperature controls, the O10-1419 provides reliable temperature monitoring and control for self-contained refrigerators, freezers, coolers, walk-in units, and refrigeration display cases. The extended capillary length allows for remote sensing applications where the control unit must be mounted away from the sensing location.
