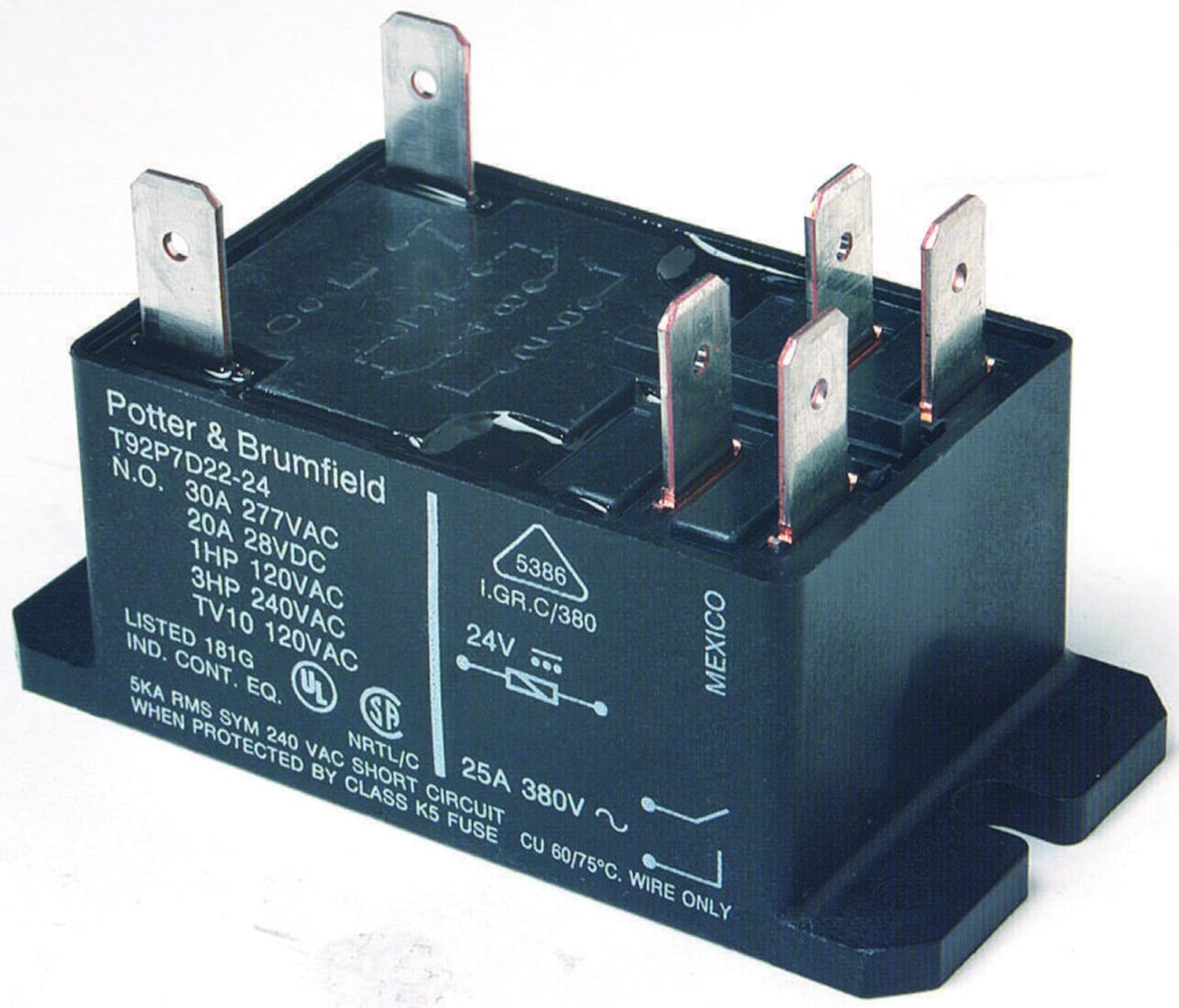

TE Connectivity T92P7D22-24 DPST-NO Power Relay 24VDC 30A

The TE Connectivity T92P7D22-24 is a high-performance general purpose power relay from the Potter & Brumfield T92 series, designed for demanding industrial and commercial applications. This DPST-NO (Double Pole Single Throw - Normally Open) relay features a 24VDC coil voltage and handles up to 30 amps AC or 20 amps DC switching capacity.

Key Specifications:

• Contact Configuration: DPST-NO (2 Form A, 2 Normally Open contacts)
• Coil Voltage: 24VDC with monostable (non-latching) operation
• Contact Rating: 30A at 277VAC, 20A at 28VDC, 40A maximum
• Contact Material: Silver Tin Oxide (AgSnO₂) for reliable switching
• Coil Resistance: 375 ohms with 1.55W power consumption
• Operating Voltage Range: 80% to 110% of nominal coil voltage
• Dielectric Strength: 4000VDC
• Mounting: Panel mount with flanged cover or PCB mount
• Terminals: Quick-connect terminals for easy installation

Features and Benefits:

• Dust-protected plastic case for enhanced durability in harsh environments
• UL Class F coil insulation classification for high-temperature performance
• UL recognized (File E22575), CSA and VDE certified for safety compliance
• High switching capacity for reliable operation in motor control, HVAC systems, lighting control, and power distribution applications
• Compact design suitable for space-constrained installations
• RoHS compliant for environmental responsibility

The T92P7D22-24 relay provides dependable performance across a wide range of industrial automation, heating and cooling systems, and electrical control applications where high-current switching and long service life are essential.
