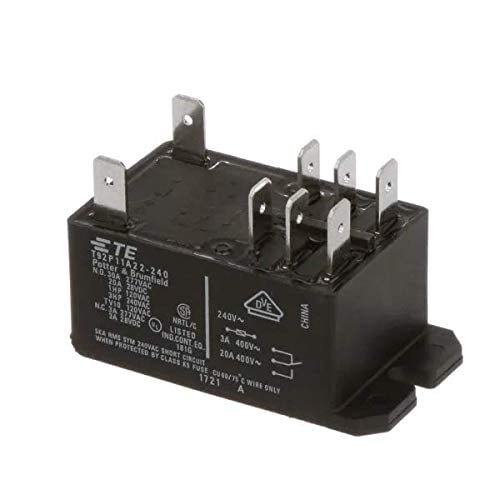

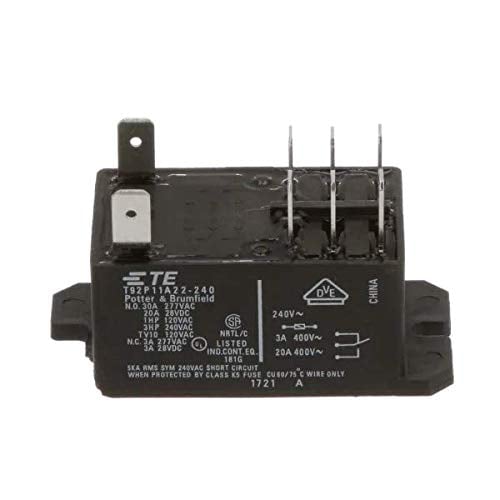

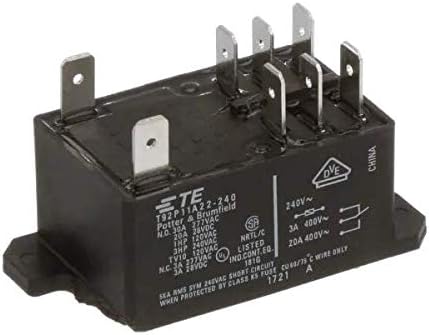

TE Connectivity T92P11A22-240 DPDT Power Relay Panel Mount - 240VAC 40A

The TE Connectivity T92P11A22-240 is a heavy-duty general purpose power relay from the Potter & Brumfield T92 Series, designed for demanding industrial and HVAC applications. This robust relay features a 240VAC coil voltage and handles loads up to 40 amps at 277VAC or 28VDC, making it ideal for controlling motors, compressors, and other high-power equipment.

Key Features:

• DPDT (2 Form C) contact configuration provides versatile switching options
• Silver cadmium oxide (AgCdO) contacts ensure reliable performance and long service life
• Panel mount design with flanged cover for secure installation
• 0.250-inch (6.35mm) x 0.032-inch (0.81mm) quick connect terminals for easy wiring
• Dust-protected plastic case for enhanced durability
• UL Class F coil insulation classification for high-temperature applications
• Monostable (non-latching) coil magnetic system
• Coil resistance: 3.8k ohms
• Rated for compressor loads up to 3.5 tons (110 LRA/25.3 FLA)

This relay is commonly used in HVAC systems, industrial control panels, motor controls, and other applications requiring reliable high-current switching. The T92 Series is known for its rugged construction and ability to handle inductive loads, making it a popular choice for professional installers and OEM equipment manufacturers.
