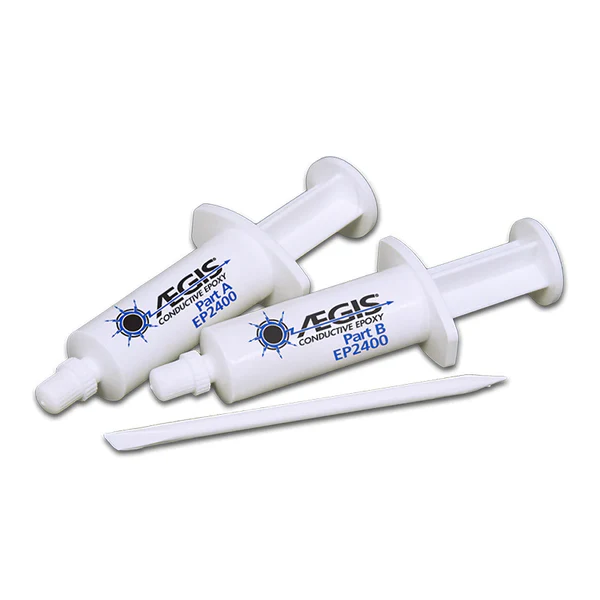

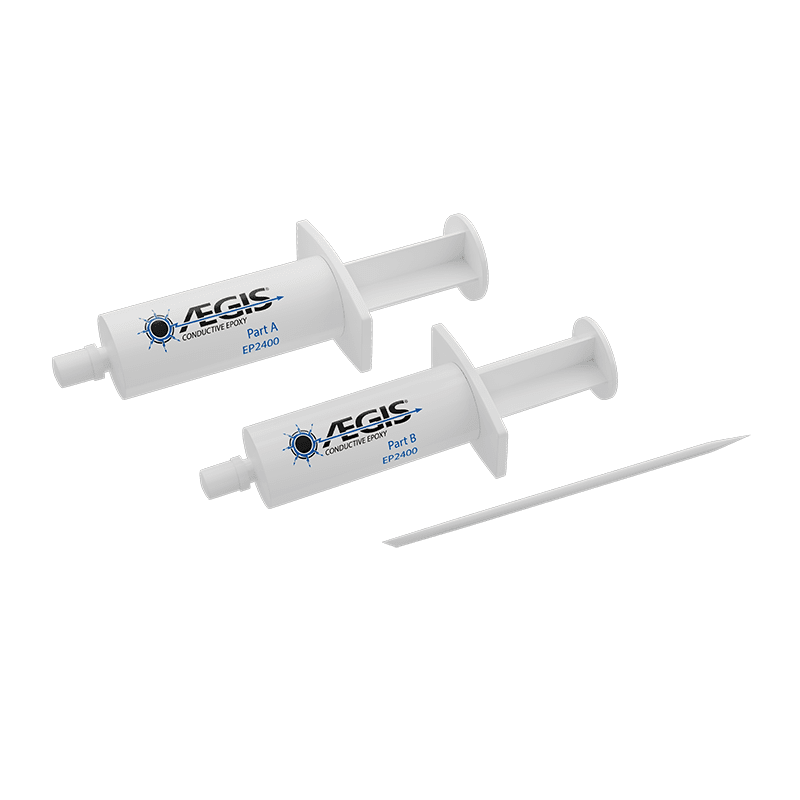

EST Aegis EP2400 Conductive Epoxy for AEGIS Bearing Protection Split Rings

The AEGIS EP2400 Conductive Epoxy is specially formulated for mounting shaft grounding rings on electric motors, simplifying installation by eliminating the need to drill and tap bolt holes. This epoxy was developed and tested to stringent conductivity, vibration, and pull test requirements to ensure a strong and reliable long-term adhesive bond.

Key Features:

• High-strength conductive bonding provides excellent electrical conductivity
• Two-part epoxy system with each tube containing 7 grams
• Coverage of 2-3 applications per package
• Cures at room temperature in 4 hours at or above 75°F (24°C)
• For faster curing, heat the bond to 150°-250°F for 10 minutes
• Pot life of approximately 10 minutes at 75°F
• 9-month shelf life when stored properly

The conductive silver epoxy provides excellent electrical conductivity, ensuring a proper ground path for AEGIS bearing protection rings. For maximum shelf life, store below 77°F in a cool, dry place away from heat, sparks, or flames. Custom-formulated specifically for AEGIS Ring installation on both solid and split ring designs.
