Itron B34SR-2 Gas Pressure Regulator with Internal Relief Valve 2" NPT

Manufacturer

Part Number

B34SR-2
Black Friday Price

$642.32

Out of Stock

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

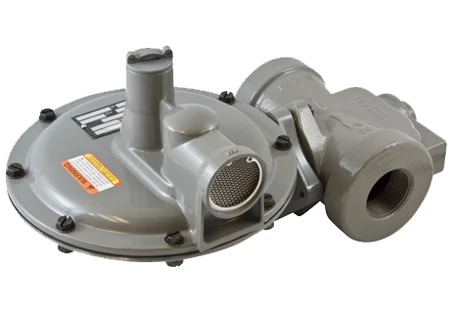

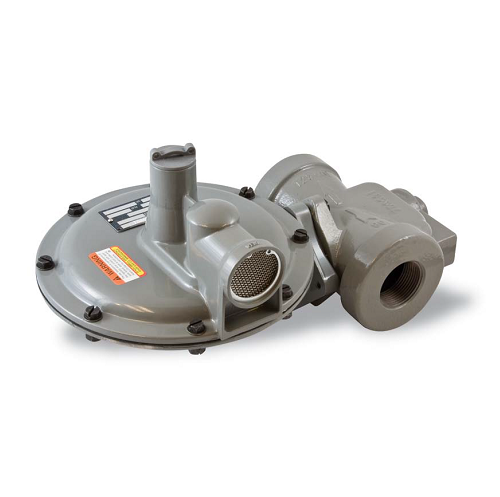

The Itron B34SR-2 is a spring-loaded, self-operated gas pressure regulator that combines the B31 8" diaphragm case with the B34 valve assembly for an economical solution to mid-range commercial and industrial applications. This model is the internal relief version of the B34S series and features an internal relief valve with a 1" vent.

Key Specifications:

  • 2" NPT inlet and outlet connections
  • 5/8" x 3/4" orifice size
  • 6-9" W.C. black spring pressure range
  • 1" NPT vent size with internal relief valve
  • 8" diaphragm (27 sq-in of diaphragm area)
  • Maximum 2 PSIG inlet pressure rating
  • Operating temperature range: -20°F to 150°F

Construction Features:

  • Interchangeable brass orifice
  • Molded diaphragm consisting of Buna-N and nylon
  • Alodined aluminum valve stem
  • All critical parts are either steel or aluminum, not plastic, to ensure reliability
  • Stainless steel vent screen
  • Field interchangeable adjustment spring

This regulator features an adjustable loading ring for controlled boost at high flows and a precision breather opening to ensure proper stability under all conditions. The rapid response of the B34 is particularly well-suited for mid-range applications where quick on/off loads cause shock problems. Ideal for use with natural gas in commercial and industrial installations including burners, furnaces, boilers, and gas engines.
