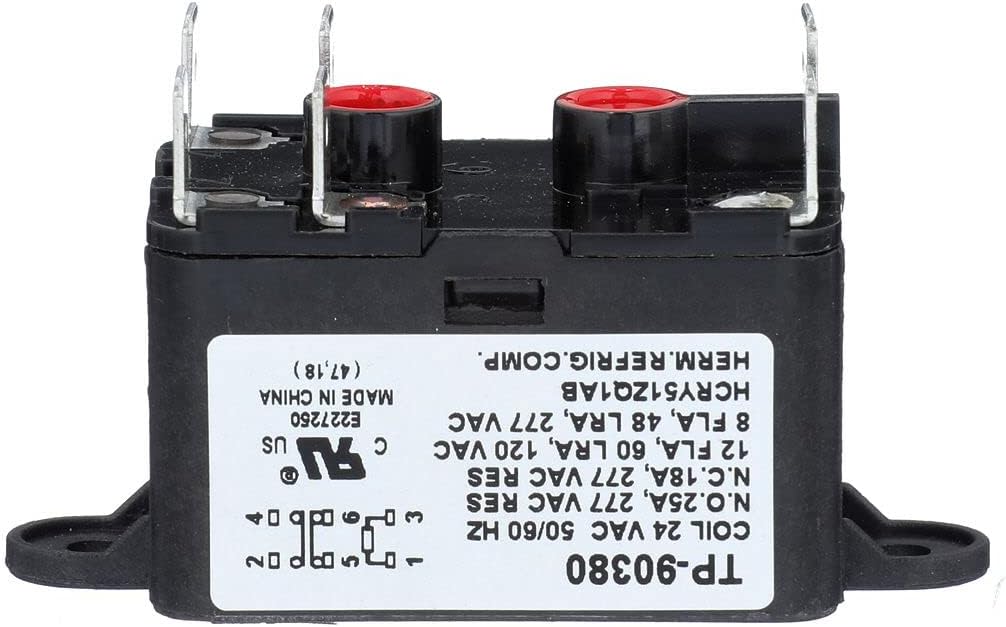

Hartland Controls 90380 24V General Purpose Relay 1NO/1NC Switch

The Hartland Controls 90380 is a 24V general purpose relay designed for HVAC systems, standby power supplies, and telephone exchange applications. An electromagnetic current actuates the relay, creating a closed circuit within the device for reliable switching control.

Key Specifications:

• Switching configuration: 1 normally open (NO) / 1 normally closed (NC)
• Normally open contact rating: 25A at 277VAC resistive
• Normally closed contact rating: 18A at 277VAC resistive
• Motor ratings: 12 FLA, 60 LRA at 120VAC; 8 FLA, 48 LRA at 277VAC
• Hermetic refrigerant compressor rated
• Coil voltage: 24 VAC 50/60 Hz
• Coil resistance: 77 Ohms, 125 mA draw
• UL 508 listed, File No. E227250

Features:

• Compact, space-saving design for easy installation
• Multi-positional mounting capability
• 0.250" quick-connect terminals for simple wiring
• Designed and engineered in the USA
• Class B insulation system for reliable performance

This relay is an ideal switching solution for HVAC fan control, boiler systems, and general industrial control applications requiring both normally open and normally closed contacts. Cross-references to numerous OEM part numbers including 50214, 50227, 112000, 121046, 320079, 6040042, and many others.
