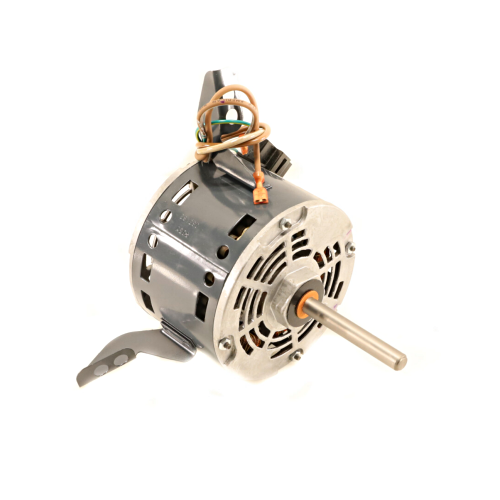

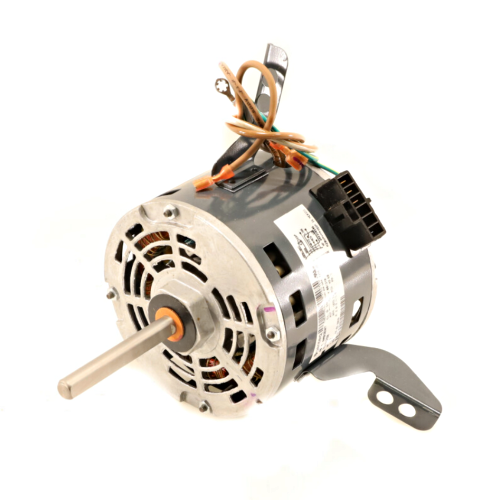

Enviro-tec PM-02-0026 Single Shaft 3-Speed Motor 1/6 HP 115V 1075 RPM

The Enviro-tec PM-02-0026 is a single-phase permanent split capacitor motor designed for VAV (Variable Air Volume) terminals and fan coil unit applications. This single shaft motor delivers reliable performance for commercial HVAC systems with 1/6 horsepower output at 1075 RPM.

Key Specifications:

• Power: 1/6 HP (horsepower)
• Voltage: 115V single phase
• Speed: 1075 RPM with 3-speed operation
• Motor Type: Permanent split capacitor (PSC)
• Shaft Configuration: Single shaft design
• Construction: Rolled steel frame with aluminum flange

Compatible Applications:

• TCS 0506/0606/0806 and TCSQ 0606/0806 VAV terminals
• TVS 0404/0504/0604/0606/0804/0806/1006 VAV units
• AFT 0505/0605/0805 terminals
• TCL 0406/0606/0806 Enviro-tec VAV units
• FS08 fan coil units
• FCC 04/06 and FN 06/12 Enviro-tec FCU units

Important Note: This motor requires a 4 MFD capacitor (Enviro-tec part number PE-12-0500), which is sold separately. Manufacturer part number 7126-1290. The durable rolled steel frame and aluminum flange construction ensures corrosion resistance and long service life in demanding commercial HVAC environments.
