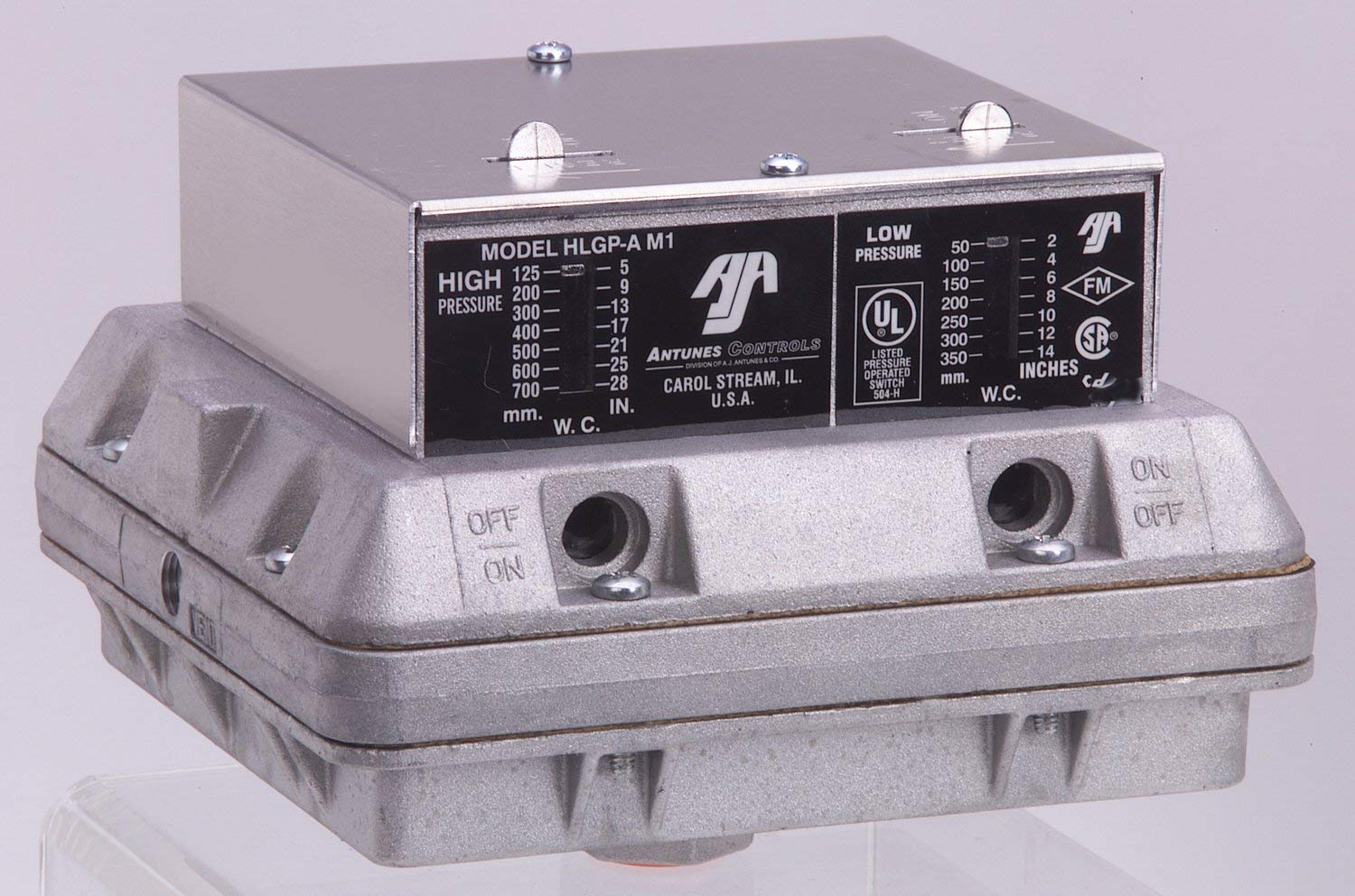

Antunes 804111707 HLGP-A Double Gas Pressure Switch Manual Reset 5-28/6-24 WC

The Antunes 804111707 HLGP-A is a double gas pressure switch that offers single point monitoring for high and low gas pressure conditions. This model features a high pressure range of 5-28" WC (125-700mm) and a low pressure range of 6-24" WC (150-600mm). This combination high/low gas pressure switch is commonly used on industrial oven gas trains.

Key Features:

• Adjustable setpoints on both high and low sides with manual reset mechanism
• Rugged die-cast aluminum housing
• Electrical ratings: 10A, 1/8HP @ 125 VAC; 5A, 1/4 HP @ 250 VAC; Pilot Duty, 125 VA @ 125-250 VAC
• UL, FM, and CSA approved
• Monitors gas pressure and cuts off the electrical control circuit when pressure drops below or rises above the desired set point

Specifications:

• Maximum surge pressure: 10 PSI
• Operating temperature range: -40°F to 140°F (-40°C to 60°C)
• High pressure gas inlet: 3/8" NPT; Low pressure gas inlet: 1/8" NPT; Vent: 1/8" NPT
• Manufactured by Crossroads Controls, formerly Antunes Controls

This pressure switch is designed for reliable monitoring and safety interlocking in commercial and industrial gas-fired equipment applications.
