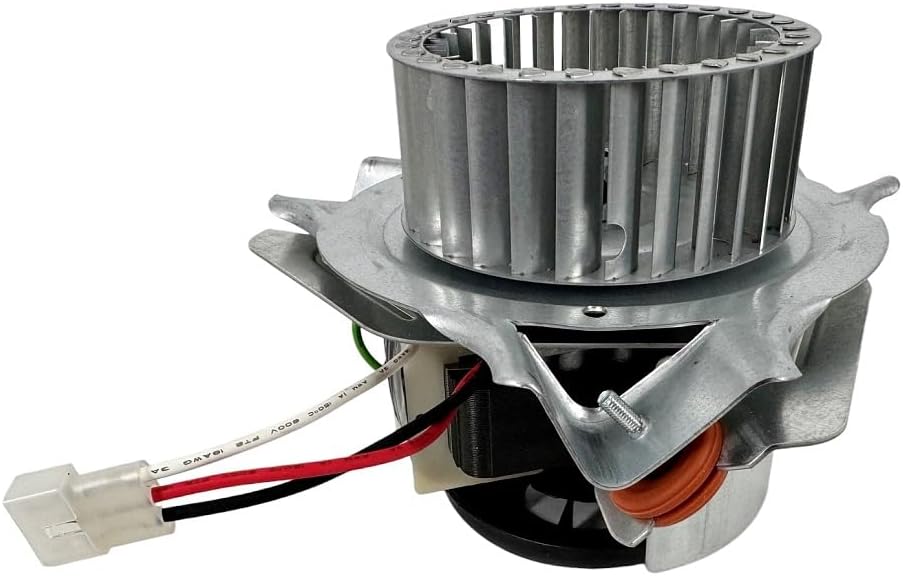

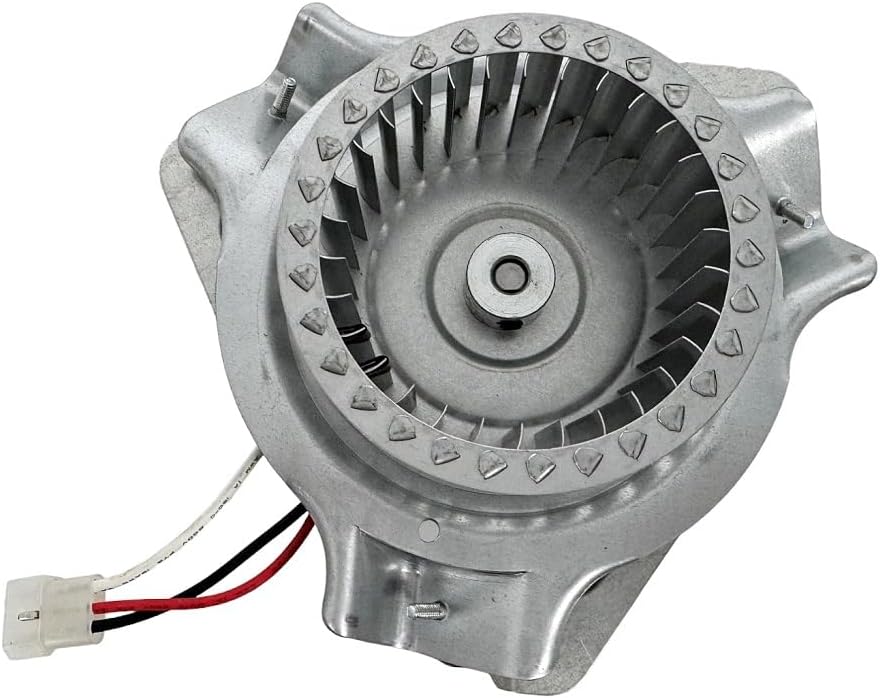

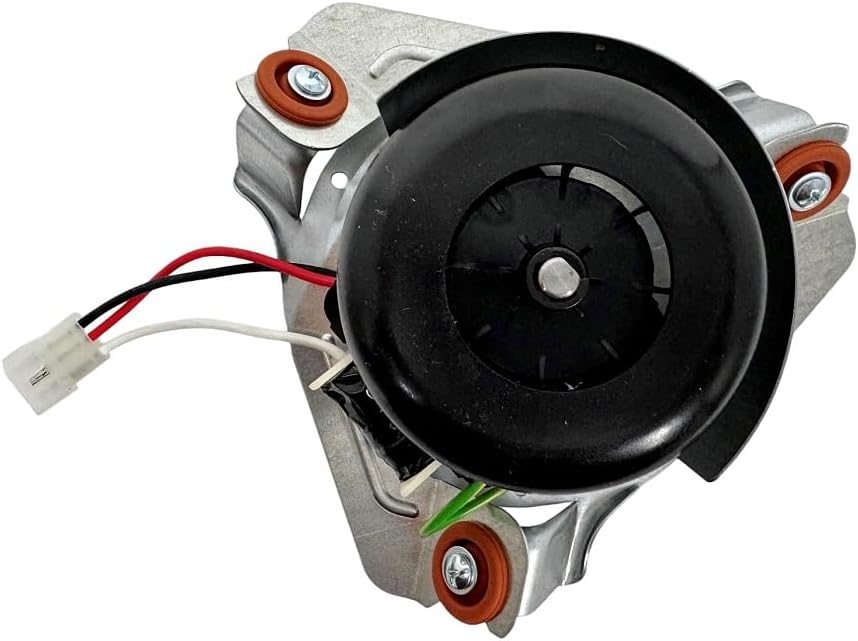

Packard 66761 Draft Inducer Motor 115V 3000 RPM Two-Speed Carrier Replacement

The Packard 66761 is a high-quality draft inducer motor assembly designed as a direct replacement for Carrier, Bryant, and Payne furnace systems. This complete replacement kit ensures efficient exhaust gas removal from your furnace, maintaining optimal combustion and safe operation of your heating system.

Technical Specifications:

• Voltage: 115V AC
• Amperage: 0.63/0.3 Amps (dual speed)
• Speed: 3000 RPM (two-speed operation)
• Frequency: 60 Hz
• Motor Type: Shaded pole
• Horsepower: 8.5 MHP (millihorsepower)
• Rotation: Counter-clockwise shaft end (CWSE)
• Bearing Type: Ball bearing
• Insulation Class: B or H (depending on version)
• Thermal Protection: Automatic overload protection

Key Features:

• Creates stable negative pressure in the heat exchanger for complete fuel combustion
• Prevents carbon monoxide and harmful gas leakage from the furnace
• Triggers pressure switch to ensure safe furnace start-up
• Quiet operation with premium ball bearings
• Includes 3-prong Molex plug connector for easy installation

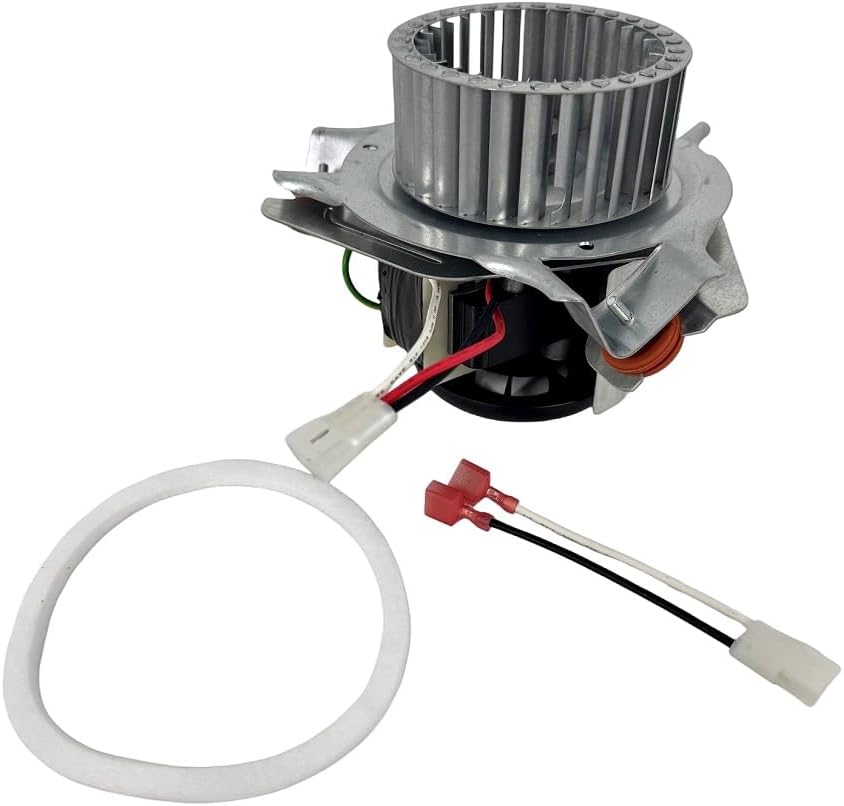

• Complete assembly includes motor, mounting bracket, and blower wheel

Replaces OEM Part Numbers: Carrier 326628-761, 326628-711, 326628-701, 327264-401, 347822-761, 349336-761, HC21ZE125, HC21ZE125A, HC21ZS125

The draft inducer motor is typically the first component that activates when your furnace calls for heat, pulling combustion gases through the heat exchanger in modern high-efficiency furnaces where natural draft is insufficient. This complete assembly provides everything needed for a straightforward replacement, eliminating the need to purchase individual components or disassemble old, corroded parts.
